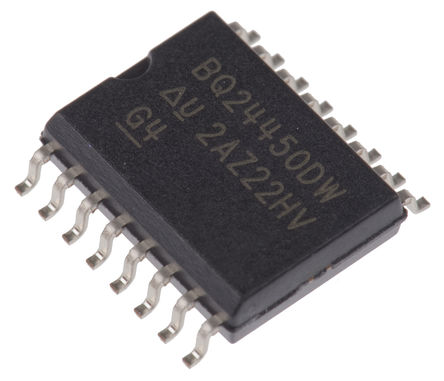

Image is for your reference only,please check specifications for details

BQ24450DW - TI
Manufacturer:
TI
ManyChip's Part#:
MC2240946
Category:
Battery Management IC
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS BQ24450DW Battery Charger for 1 Cell of Lead Acid battery, 40V input, 40mA charge, SOIC-16
Stock Locations:
Availability:
299 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.84

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ24450DW is an Integrated-charge Controller for lead-acid batteries contains all the necessary circuitry to optimally control the charging of valve-regulated lead-acid batteries. The IC controls the charging current as well as the charging voltage to safely and efficiently charge the battery, maximizing battery capacity and life. Depending on the application, the IC can be configured as a simple constant-voltage float charge controller or a dual-voltage float-cum-boost charge controller. The built-in precision voltage reference is especially temperature-compensated to track the characteristics of lead-acid cells and maintains optimum charging voltage over an extended temperature range without using any external components. The ICs low current consumption allows for accurate temperature monitoring by minimizing self-heating effects. The IC can support a wide range of battery capacities and charging currents, limited only by the selection of the external pass transistor.
Regulates both voltage and current during charging
Maximizes battery capacity over-temperature
Ensures safety while charging over-temperature
Optimum control to maximize battery capacity and life
Supports different configurations
Minimum external components
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

BQ24450DW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Input Voltage (DC)	40.0 V
Number of Positions	16 Position
Power Dissipation	1000 mW
Output Voltage (Max)	2.6 V
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	5V ~ 40V
Input Voltage	40 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 70℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
