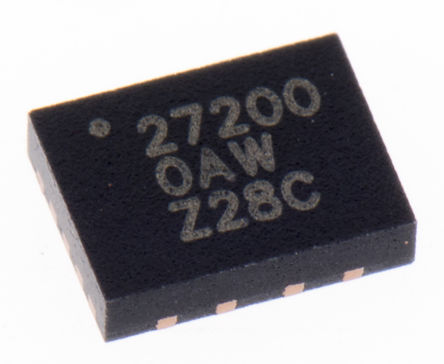

Image is for your reference only,please check specifications for details

BQ27200DRKR - TI
Manufacturer:
TI
ManyChip's Part#:
MC6101233
Category:
Battery Management IC
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
Li-Ion, Li-Pol Battery Fuel Gauge IC, 2.6V to 4.5V supply, Two Wire/I2C/Serial interface, SON-10
Stock Locations:
Availability:
9,126 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BQ27200DRKR is a stand-alone highly accurate single-cell Li-ion and Li-pol battery gas gauge Integrated Circuit with I²C interface targeted at space-limited, portable applications. The IC monitors a voltage drop across a small current sense resistor connected in series with the battery to determine charge and discharge activity of the battery. Compensations for battery temperature, self-discharge and discharge rate are applied to the capacity measurements to provide available time-to-empty information across a wide range of operating conditions. Battery capacity is automatically recalibrated or learned, in the course of a discharge cycle from full to empty. Internal registers include current, capacity, time-to-empty, state-of-charge, cell temperature and voltage, status and more.
Reports accurate time-to-empty with measured load and historical maximum and standby loads
Reports temperature, voltage and current
High accuracy charge and discharge current integration with automatic offset calibration
Requires no user calibration
Programmable input/output port
Internal user EEPROM configuration memory
Automatic capacity reduction with age
Stable oscillator without external components
Dynamic end-of-discharge detection delay to allow use in a high-dynamic load environment
Automatic sleep mode when communication lines are low
Green product and no Sb/Br

Show

BQ27200DRKR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON-10
Frequency	100 kHz
Supply Voltage (DC)	2.60V (min)
Number of Outputs	1 Output
Number of Positions	10 Position
Input Voltage (Max)	7 V
Output Voltage (Max)	400 mV
Output Current (Max)	5 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	2.6V ~ 4.5V
Supply Voltage (Max)	4.5 V
Supply Voltage (Min)	2.6 V
	Show
Size-Length	4 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-20℃ ~ 70℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
