DESCRIPTION
The bq5101x is an advanced, integrated, receiver IC for wireless power transfer in portable applications.
The device provides the AC/DC power conversion while integrating the digital control required to comply
with the Qi v1.0 communication protocol.
FEATURES
• Integrated Wireless Power Receiver Solution with a 5V Regulated Supply
– 93% Overall Peak AC-DC Efficiency
– Full Synchronous Rectifier
– WPC v1.0 Compliant Communication Control
– Output Voltage Conditioning
– Only IC Required Between RX coil and 5V DC Output Voltage
• Dynamic Rectifier Control for Improved Load Transient Response
• Supports 20-V Maximum Input
• Low-power Dissipative Rectifier Overvoltage Clamp (VOVP = 15V)
• Thermal Shutdown
• Single NTC/Control Pin for Optimal Safety and I/O Between Host
• Stand-alone Digital Controller
• 1.9 x 3mm DSBG or 4.5 x 3.5mm QFN Package
APPLICATIONS
• WPC Compliant Receivers
• Cell Phones, Smart Phones
• Headsets
• Digital Cameras
• Portable Media Players
• Hand-held Devices

Show

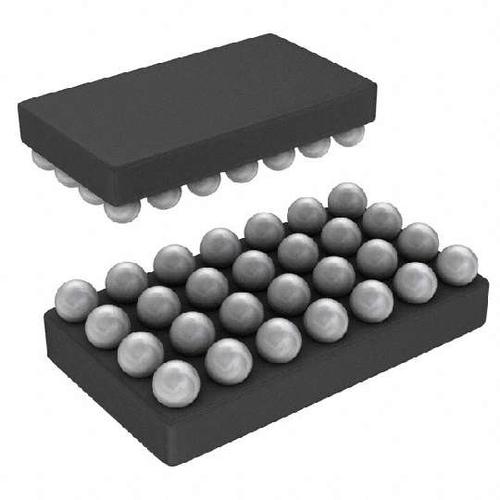

BQ51013YFFT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	28 Pin
Case/Package	DSBGA-28
Supply Voltage (DC)	4.00V (min)
Input Voltage (DC)	4.00V ~ 10.0V
Output Current	1.5 A
Supply Current	1.5 A
Number of Positions	28 Position
Number of Regulated Outputs	1 Output
Output Power	5 W
Input Voltage (Max)	10 V
Input Voltage (Min)	4 V
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	4V ~ 10V
Supply Voltage (Max)	10 V
Supply Voltage (Min)	4 V
	Show
Size-Height	0.4 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
