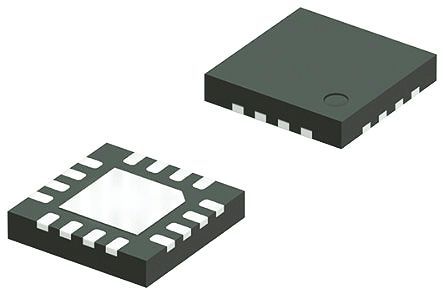

Image is for your reference only,please check specifications for details

LOG114AIRGVT - TI
Manufacturer:
TI
ManyChip's Part#:
MC26307500
Category:
Amplifier, Buffer IC
Package:
VQFN-16
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS LOG114AIRGVT Logarithmic Amplifier, Single-Supply, 5 Amplifier, 8 Decades, 375mV / Decade, 1.5µs, VQFN, 16Pins
Stock Locations:
Availability:
4,603 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 13.18

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LOG114AIRGVT is a precision high-speed Logarithmic Amplifier designed for measuring low-level and wide dynamic range currents in communications and lasers. The device computes the logarithm or log-ratio of an input current or voltage relative to a reference current or voltage (logarithmic transimpedance amplifier). High precision is ensured over a wide dynamic range of input signals on either bipolar (±5V) or single (+5V) supply. Special temperature drift compensation circuitry is included on-chip. In log-ratio applications, the signal current may be from a high impedance source such as a photodiode or resistor in series with a low impedance voltage source. The reference current is provided by a resistor in series with a precision internal voltage reference, photo diode or active current source. The output signal at VLOGOUT has a scale factor of 0.375V out per decade of input current, which limits the output so that it fits within a 5 or 10V range.
Tiny for high density systems
Precision on one supply
Fast over eight decades
Fully-tested function
Stabile over temperature
Green product and no Sb/Br

Show

LOG114AIRGVT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	VQFN-16
Supply Current	10 mA
Number of Circuits	1 Circuit
Number of Channels	5 Channel
Number of Positions	16 Position
Common Mode Rejection Ratio	70 dB
Quiescent Current	10.0 mA
Bandwidth	50 MHz
Slew Rate	5.00 V/μs
Gain Bandwidth Product	50 MHz
Input Offset Voltage	4 mV
Input Bias Current	5 pA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
3dB Bandwidth	5 MHz
Gain Bandwidth	15 MHz
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	2.4 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	0.95 mm
Operating Temperature	-5℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
