- AGN2104H - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC36817714
-
Category:Industrial Relay
-
Package:DIP
-
Datasheet:Datasheet 3D Model
-

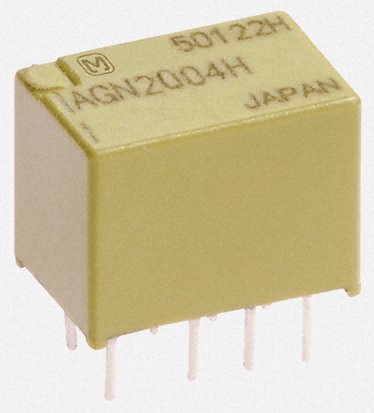

Description:Electromechanical Relay 4.5VDC 202.5Ω 1A DPDT(10.6mm 5.7mm 9mm) THT General Purpose Relay
-
Stock Locations:
-
Availability:1,185 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.5
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **AGN Series**
- These ultra-small PCB mount polarized relays have a compact slim body with a low height of 9mm and small surface area of 5.7 x 10.6 mm. They also offer outstanding surge resistance, increased packging density and high vibration and shock resistance. Typical applications include telecommunications and measurement equipment, audio visual equipment etc.
AGN2104H Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 8 Pin |
| Case/Package | DIP |
| Voltage Rating (DC) | 110 V |
| Voltage Rating (AC) | 125 V |
| Contacts Type | DPDT |
| Power Consumption | 100 mW |
| Contact Current Rating | 1 A |
| Coil Voltage | 4.5 VDC |
| Coil Current | 22.2 mA |
| Coil Resistance | 202.5 Ω |
| Current Rating (Max) | 1 A |
| Coil Voltage (DC) | 4.5 V |
| Coil Power | 100 mW |
| Input Power (Max) | 30W, 37.5VA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 10.6 mm |
| Size-Width | 9 mm |
| Size-Height | 9 mm |
| Contact Material | Silver Palladium |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536490050 |
| ECCN Code | EAR99 |
