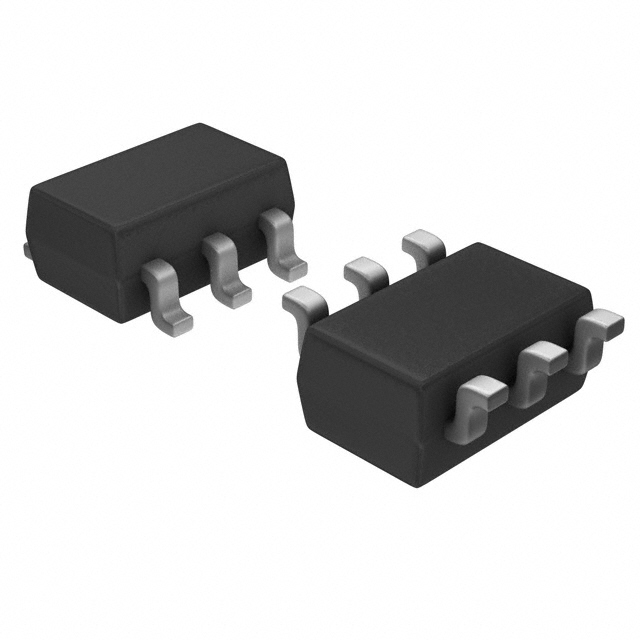

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The FL7760 is a high efficiency step-down controller for middle to high power lighting applications that operate in CCM (Continuous Current Mode). The FL7760 can operate in wide 8 ~ 60 V input range and support both PWM and analog dimming through DIM pin with small 6 pin package
- Features | | Benefits
- ---|---|---
- | | | | |
- Quadratic Analog Dimming Curve ("A" version)
- | |
- Wide Analog Dimming Operation Range: 5~100%
- Analog/PWM Dimming signal both compatible
- | |
- Design Flexibility with Wide Dimming Operation Range
- High Switching Frequency up to 1 MHz
- | |
- Small form factor Inductor
- Wide Input Voltage Range: 8 VDC ~ 60 VDC
- | |
- Design Flexibility
- Low Stand-by/ Operation Consumption Current: 240/300 µA
- | |
- Low Stand-by Power
FL7760BM6X Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-23-6 |
| Frequency | 1 MHz |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 24 V |
| Output Voltage | 4.5V ~ 5.5V |
| Number of Channels | 1 Channel |
| Power Dissipation | 247 mW |
| Input Voltage (DC Max) | 60 V |
| Input Voltage (DC Min) | 8 v |
| Output Voltage (Max) | 5.5 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 247 mW |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
