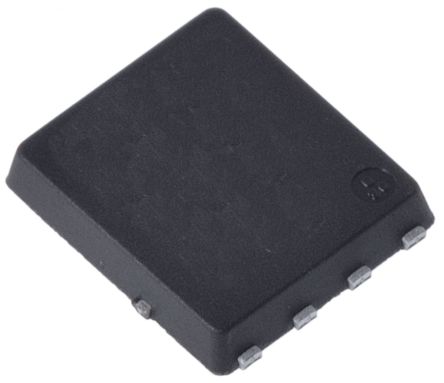

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Optimized for synchronous rectification
- 40% lower R DS(on) than alternative devices
- 40% improvement of FOM over similar devices
- RoHS compliant - halogen free
- MSL1 rated
- Benefits:
- Highest system efficiency
- Less paralleling required
- Increased power density
- System cost reduction
- Very low voltage overshoot
BSC097N06NSATMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PG-TDSON-8 |
| Power Rating | 36 W |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.008 Ω |
| Polarity | N-Channel |
| Power Dissipation | 36 W |
| Threshold Voltage | 2.8 V |
| Drain to Source Voltage (Vds) | 60 V |
| Continuous Drain Current (Ids) | 46A |
| Rise Time | 2 ns |
| Input Capacitance (Ciss) | 860pF @30V(Vds) |
| Fall Time | 2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2.5W (Ta), 36W (Tc) |
| Show | |
| Size-Length | 5.35 mm |
| Size-Width | 6.1 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | |
| REACH SVHC Compliance Edition | 2015/12/17 |
