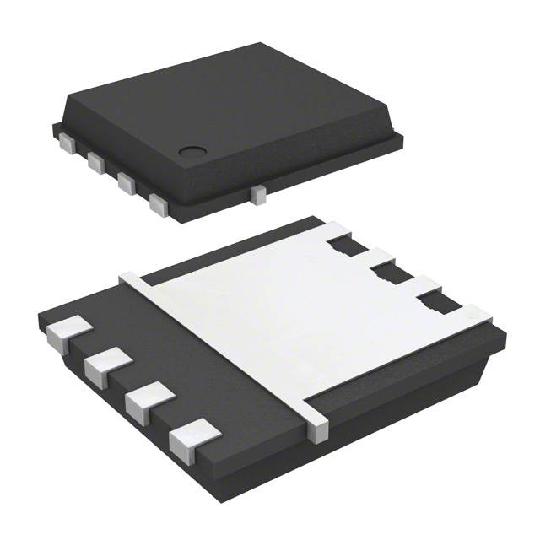

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

BSC12DN20NS3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TDSON-8
Number of Channels	1 Channel
Drain to Source Resistance (on) (Rds)	108 mΩ
Polarity	N-Channel
Power Dissipation	50 W
Drain to Source Voltage (Vds)	200 V
Breakdown Voltage (Drain to Source)	200 V
Continuous Drain Current (Ids)	11.3A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
	Show
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	PB free
REACH SVHC Compliance	No SVHC
