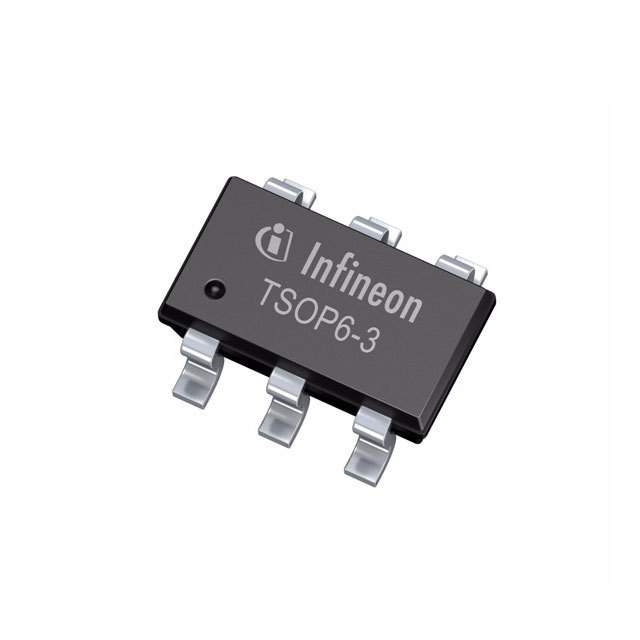

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BSL306NH6327XTSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	TSOT-23-6
Power Rating	500 mW
Number of Positions	6 Position
Drain to Source Resistance (on) (Rds)	0.043 Ω
Polarity	N-CH
Power Dissipation	500 mW
Threshold Voltage	1.6 V
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	2.3A
Rise Time	2.3 ns
Input Capacitance (Ciss)	275pF @15V(Vds)
Input Power (Max)	500 mW
Fall Time	1.4 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	500 mW
	Show
Size-Length	2.9 mm
Size-Width	1.6 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
