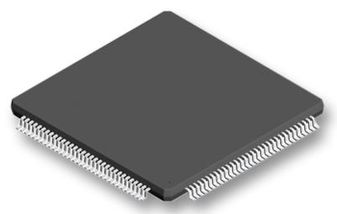

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Product Details
- The AD8116 is a high speed 16 × 16 video crosspoint switch matrix. It offers a -3 dB signal bandwidth greater than 200 MHz and channel switch times of 50 ns with 0.1% settling. With -60 dB of crosstalk and -105 dB of isolation (@ 10 MHz), the AD8116 is useful in many high speed applications. The differential gain and differential phase errors of better than 0.01% and 0.01°, respectively, along with 0.1 dB flatness out to 60 MHz make the AD8116 ideal for video signal switching.
- The AD8116 includes output buffers that can be placed into a high impedance state for paralleling crosspoint outputs so that off channels do not load the output bus. It operates on voltage supplies of ±5 V while consuming only 80 mA of idle current. The channel switching is performed via a serial digital control that can accommodate "daisy chaining" of several devices.
- The AD8116 is packaged in a 128-lead LQFP package occupying only 0.36 square inches, and is specified over the commercial temperature range of 0°C to +70°C.
- An evaluation board is available for this product and may be ordered using the following product number: AD8116-EB. Schematic and layout for this evaluation board is contained in the product datasheet.
- ### Features and Benefits
- 16 x 16 High-Speed Nonblocking Switch Array
- Switch Array Controllable via an 80-Bit Serial Word
- Serial Data Out Allows "Daisy Chaining" of Multiple AD8116s to Create Large Switch Arrays Over 256 x 256
- Complete Solution
- Buffered Inputs
- 16 Individual Output Amplifiers
- Drives 150 Ω Loads
- Excellent AC Performance
- 200 MHz –3 dB Bandwidth
- 300 V/µs Slew Rate
- Excellent Video Performance
- 60 MHz, 0.1 dB Gain Flatness
- 0.01% Differential Gain Error
- (RL = 150 Ω)
- 0.01± Differential Phase Error
- (RL = 150 Ω)
- Low Power of 900 mW (3.5 mW per Point)
- Low All Hostile Crosstalk of –70 dB @ 5 MHz
- See data sheet for additional Features
AD8116JSTZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 128 Pin |
| Case/Package | LQFP-128 |
| Supply Voltage (DC) | 4.50V (min) |
| Supply Current | 75 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 128 Position |
| Bandwidth | 200 MHz |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| 3dB Bandwidth | 200 MHz |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 4.5 V |
| Show | |
| Size-Length | 14 mm |
| Size-Width | 14 mm |
| Size-Height | 1.6 mm |
| Operating Temperature | 0℃ ~ 70℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
| HK STC License | NLR |
