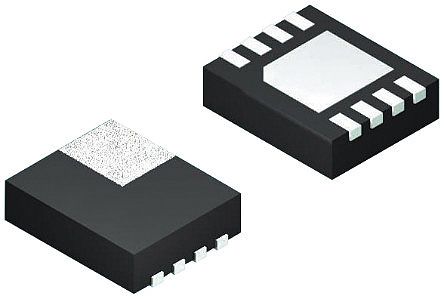

TPS62060DSGT - TI
Manufacturer:
TI
ManyChip's Part#:
MC35104129
Category:
DC to DC Converter
Package:
WSON-8
Datasheet:
Datasheet 3D Model
Description:
Step-Down Regulator 3MHz, 1.6A Step-Down Converter in 2x2 SON Package Conv DC-DC Single Step Down 2.7V to 6V 8Pin WSON EP T/R
Stock Locations:
Availability:
272 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.64

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS62060DSGT is a highly efficient synchronous step-down DC-to-DC Converter for use with point of load (POL). It provide up to 1.6A output current. With an input voltage range of 2.7 to 6V, the device is a perfect fit for power conversion from a single Li-ion battery as well from 5 or 3.3V system supply rails. The TPS6206x operates at 3MHz fixed frequency and enters power save mode operation at light load current to maintain high efficiency over the entire load current range. The power save mode is optimized for low output voltage ripple. For low noise applications, the device can be forced into fixed frequency PWM mode by pulling the MODE pin high. In the shutdown mode, the current consumption is reduced to less than 1µA and an internal circuit discharges the output capacitor. TPS6206x family is optimized for operation with a tiny 1µH inductor and a small 10µF output capacitor to achieve smallest solution size and high regulation performance.
Power save mode and 3MHz fixed PWM mode
Output voltage accuracy in PWM mode ±1.5%
Output discharge function
100% Duty cycle for lowest dropout
Voltage positioning
Clock dithering
Supports maximum 1mm height solutions
Up to 97% efficiency
18µA Typical quiescent current
Green product and no Sb/Br

Show

TPS62060DSGT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	WSON-8
Number of Outputs	1 Output
Output Voltage	0.8V ~ 6V
Output Current	1.6 A
Number of Positions	8 Position
Quiescent Current	18.0 µA
Number of Regulated Outputs	1 Output
Switching Frequency	3 MHz
Topology	Buck
Switching Current	2.25 A
Input Voltage (Max)	6 V
Input Voltage (Min)	2.7 V
Output Voltage (Max)	6 V
Output Voltage (Min)	800 mV
Output Current (Max)	1.6 A
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7 V
Input Voltage	2.7V ~ 6V
	Show
Size-Length	2.1 mm
Size-Width	2.1 mm
Size-Height	0.75 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
