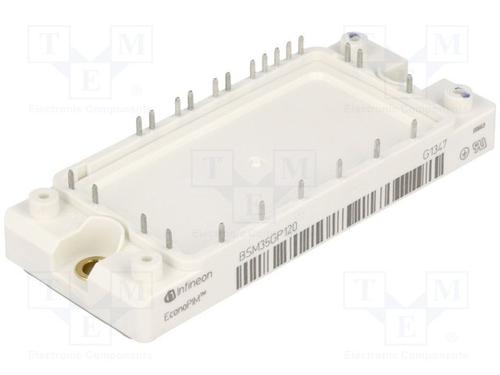

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

BSM35GP120 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	EconoPIM-2
Power Rating	230 W
Power Dissipation	230 W
Breakdown Voltage (Collector to Emitter)	1200 V
Input Capacitance (Cies)	1.5nF @25V
Input Power (Max)	230 W
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	107.5 mm
Size-Width	45 mm
Size-Height	17 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Not Recommended for New Design
Packaging	Box
RoHS	RoHS Compliant
Lead-Free Status
ECCN Code	EAR99
