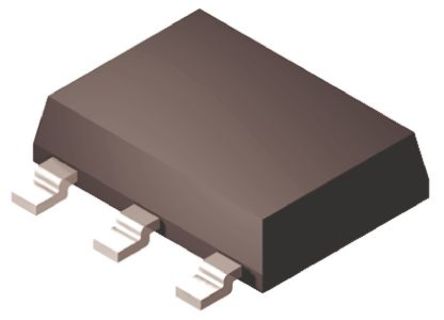

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BSP52T1G is a NPN bipolar Darlington Transistor designed for use in switching applications such as print hammer, relay, solenoid and lamp drivers. The device is housed in the package which is designed for medium power surface-mount applications. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die.
Can be soldered using wave or reflow
PNP complement is BSP62T1
AECQ101 qualified and PPAP capable

Show

BSP52T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	TO-261-4
Voltage Rating (DC)	80.0 V
Current Rating	1.00 A
Halogen Free Status	Halogen Free
Output Voltage	80 V
Output Current	1 A
Number of Circuits	4 Circuit
Number of Positions	4 Position
Polarity	NPN
Power Dissipation	800 mW
Breakdown Voltage (Collector to Emitter)	80 V
Thermal Resistance	156℃/W (RθJA)
Continuous Collector Current	1A
hFE Min	2000 @500mA, 10V
Input Power (Max)	800 mW
DC Current Gain (hFE)	1000
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
Power Dissipation (Max)	1250 mW
Input Voltage	5 V
	Show
Size-Length	6.5 mm
Size-Width	3.5 mm
Size-Height	1.57 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
