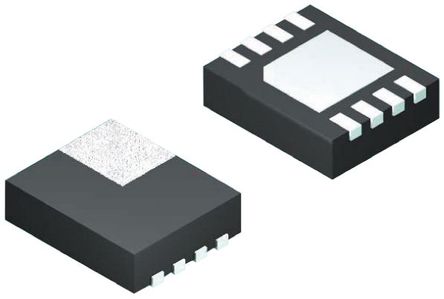

Image is for your reference only,please check specifications for details
- BSZ040N04LS G - Infineon
-
Manufacturer:Infineon
-
ManyChip's Part#:MC50508703
-
Category:MOSFET, MOSFET Transistor
-
RoHS:Lead free / RoHS Compliant
-
Datasheet:Datasheet 3D Model
-
Description:Trans MOSFET N-CH 40V 18A 8Pin TSDSON EP
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- Excellent gate charge x R DS(on) product (FOM)
- Very low on-resistance R DS(on)
- Ideal for fast switching applictions
- RoHS compliant - halogen free
- MSL1 rated
- Benefits:
- Highest system efficiency
- Less paralleling required
- Increased power density
- System cost reduction
- Very low voltage overshoot
BSZ040N04LS G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | TSDSON-8 |
| Polarity | N-Channel |
| Power Dissipation | 69 W |
| Drain to Source Voltage (Vds) | 40 V |
| Rise Time | 4.8 ns |
| Input Capacitance (Ciss) | 3800pF @20V(Vds) |
| Input Power (Max) | 69 W |
| Fall Time | 5.4 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 69 W |
| Show | |
| Size-Length | 3.3 mm |
| Size-Width | 3.4 mm |
| Size-Height | 1.1 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
