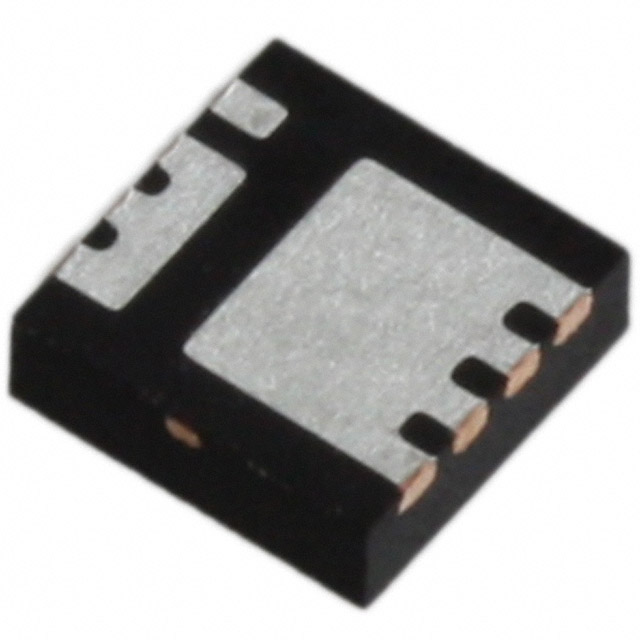

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Ultra low gate and output charge * Lowest on-state resistance in small footprint packages * Easy to design in
BSZ0909NS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | PowerTDFN-8 |
| Polarity | N-Channel |
| Drain to Source Voltage (Vds) | 30 V |
| Continuous Drain Current (Ids) | 9A |
| Rise Time | 2.2 ns |
| Input Capacitance (Ciss) | 1700pF @15V(Vds) |
| Input Power (Max) | 2.1 W |
| Fall Time | 2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 2100 mW |
| Show | |
| Size-Length | 3.3 mm |
| Size-Height | 1.10 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
