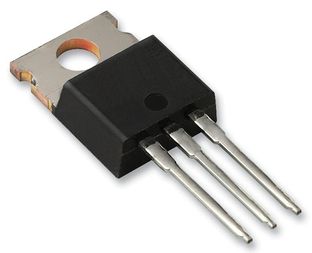

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- For all your high current and voltage switching needs, use this low side BTS141BKSA1 power switch by Infineon Technologies to get the fastest on and off response. This charge controller has single output. It features 0.28 Ohm switch on resistance. This device has a maximum power dissipation of 149000 mW. Its maximum power dissipation is 149000 mW. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This charge controller has an operating temperature range of -40 °C to 150 °C.
BTS141BKSA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Number of Outputs | 1 Output |
| Output Current | 12 A |
| Power Dissipation | 149 W |
| Output Current (Min) | 12 A |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 149000 mW |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
