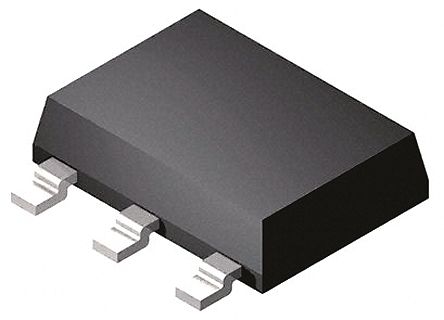

BTS3205NHUSA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC5036933
Category:
Power Distribution
Package:
SOT-223-4
Datasheet:
Datasheet 3D Model
Description:
Power Switch Lo Side 1Out 0.35A 0.9Ω Automotive 4Pin(3+Tab) SOT-223 T/R
Stock Locations:
Availability:
208 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.98

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS3205N is a single channel low-side Power Switch providing embedded protective functions. The device is monolithic integrated and consist of an N-channel power MOSFET transistor and additional protection circuitry.
Low input current
Short-circuit and overload protection
Current limitation
Thermal protection with auto restart
Compatible to standard Power MOSFET
Analog driving possible
Green product
AEC qualified

Show

BTS3205NHUSA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	SOT-223-4
Power Rating	0.78 W
Number of Outputs	1 Output
Input Voltage (DC)	42.0 V
Output Current	0.35 A
Number of Positions	4 Position
Power Dissipation	780 mW
Output Current (Max)	350 mA
Output Current (Min)	0.35 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	780 mW
Supply Voltage (Max)	10 V
Supply Voltage (Min)	0.2 V
Input Voltage	42 V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
