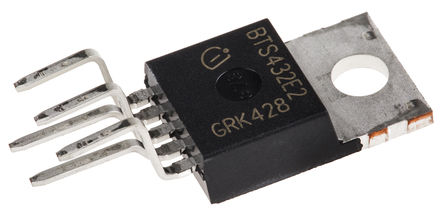

BTS432E2 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC6922004
Category:
FET Driver
Package:
TO-220-5
Datasheet:
Datasheet 3D Model
Description:
Buffer/Inverter Based Peripheral Driver, 1 Driver, 44A, MOS, PZFM5, PLASTIC, TO-220AB, 5Pin
Stock Locations:
Availability:
1,843 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS432E2 is a high side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions.
Load Dump and Reverse Battery Protection
Clamp of Negative Voltage at Output
Short-circuit Protection
Current Limitation
Thermal Shutdown
Diagnostic Feedback
Open Load Detection in ON-state
CMOS Compatible Input
Electrostatic Discharge (ESD) Protection
Loss of Ground and Loss of Vbb Protection
Overvoltage Protection
Under-voltage and Overvoltage Shutdown with Auto-restart and Hysteresis
High Load Current Capability
High Inrush Current Capability
Very High Energy Capability
Capable for 24V Applications
Integrated Protection Functionality
Integrated Diagnosis Functionality
Due to technical requirements components may contain dangerous substances, component may only be used in life-support devices or systems with the express written approval of Infineon Technologies.

Show

BTS432E2 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-220-5
Supply Voltage (DC)	42.0V (max)
Number of Outputs	1 Output
Input Voltage (DC)	42.0 V
Output Voltage	4.5.42 V
Output Current	11 A
Number of Channels	1 Channel
Number of Positions	5 Position
Drain to Source Resistance (on) (Rds)	30 mΩ
Polarity	N-Channel
Power Dissipation	125 W
Drain to Source Voltage (Vds)	42 V
Continuous Drain Current (Ids)	11.0 A
Input Voltage (Max)	6 V
Input Voltage (Min)	0.5 V
Output Current (Max)	9 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5V ~ 42V
Input Voltage	6 V
	Show
Size-Length	9.9 mm
Size-Width	4.4 mm
Size-Height	9.25 mm
Size-Thickness	4.40 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
