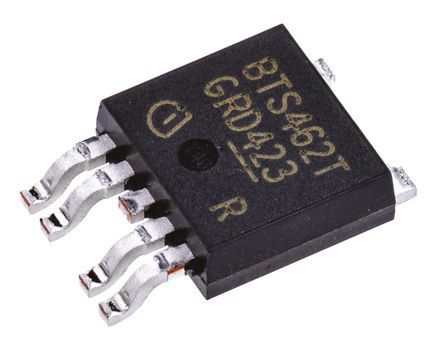

Image is for your reference only,please check specifications for details

BTS462TATMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC1190904
Category:
Power Distribution
Package:
TO-252
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 3.5A 0.2Ω Automotive 5Pin(4+Tab) TO-252 T/R
Stock Locations:
Availability:
202 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.39

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS462T is a 1-output N-channel high-side vertical Power FET Switch with charge pump, ground referenced CMOS compatible input and monolithically integrated in smart SIPMOS® technology. It provides embedded protective functions, fast demagnetization of inductive loads and reverse battery protection with external resistor.
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown with restart
Overvoltage protection
Shutdown when under-voltage
Loss GND and loss VBB protection
Electrostatic discharge (ESD) protection
Very low standby current
Negative voltage clamped at output with inductive loads
ESD sensitive device, take proper precaution while handling the device.

Show

BTS462TATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-252
Number of Outputs	1 Output
Output Current	4.4 A
Supply Current	1.3 mA
Number of Positions	5 Position
Power Dissipation	41.6 W
Output Current (Min)	3.5 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	41600 mW
Input Voltage	16 V
	Show
Size-Length	6.5 mm
Size-Width	6.22 mm
Size-Height	2.3 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
