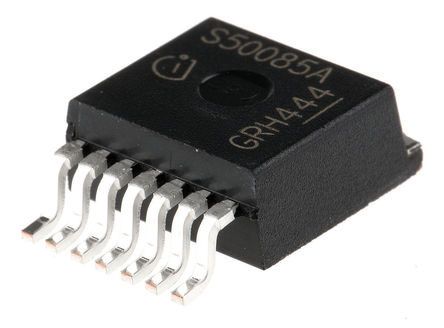

BTS500851TMAATMA1 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC1664614
Category:
Power Distribution
Package:
TO-220
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 9.9A 0.0072Ω Automotive 8Pin(7+Tab) TO-220 SMD T/R
Stock Locations:
Availability:
310 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.24

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS50085-1TMA is a high-side Power Switch IC with integrated vertical power FET, providing embedded protection and diagnostic functions. It is placed between the supply and load in order to control the application.
Overload protection
Current limitation
Short-circuit protection
Over-temperature protection
Overvoltage protection
Clamp of negative voltage at output
Fast deenergizing of inductive loads 1
Low ohmic inverse current operation
Diagnostic feedback with load current sense
Open load detection via current sense
Loss of Vbb protection
12 or 24V capable
Single channel
ESD sensitive device, take proper precaution while handling the device.

Show

BTS500851TMAATMA1 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-220
Number of Outputs	1 Output
Output Current	9.9 A
Supply Current	0.8 mA
Number of Positions	7 Position
Power Dissipation	170 W
Input Voltage (Min)	5 V
Output Current (Min)	9.9 A
Number of Inputs	1 Input
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	170000 mW
Input Voltage	58 V
	Show
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	Compliant with Exemption
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
