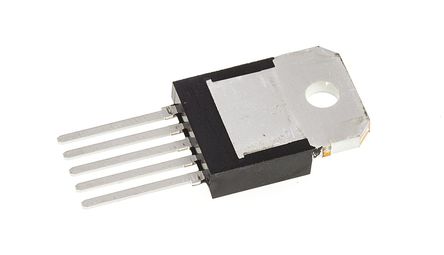

Image is for your reference only,please check specifications for details

BTS555 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC43223146
Category:
FET Driver
Package:
TO-218-5
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 1Out 128A 0.0019Ω Automotive 5Pin(5+Tab) TO-218 Tube
Stock Locations:
Availability:
10,498 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 15.84

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

BTS555 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	TO-218-5
Supply Voltage (DC)	42.0 V
Number of Outputs	1 Output
Output Current	165 A
Number of Channels	1 Channel
Polarity	N-Channel
Power Dissipation	360000 mW
Continuous Drain Current (Ids)	158 A
Output Current (Max)	128 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	5V ~ 34V
	Show
Size-Length	15 mm
Size-Width	12.5 mm
Size-Height	4.9 mm
Operating Temperature	-40℃ ~ 150℃
Product Lifecycle Status	End of Life
Packaging	Tube
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
