Description

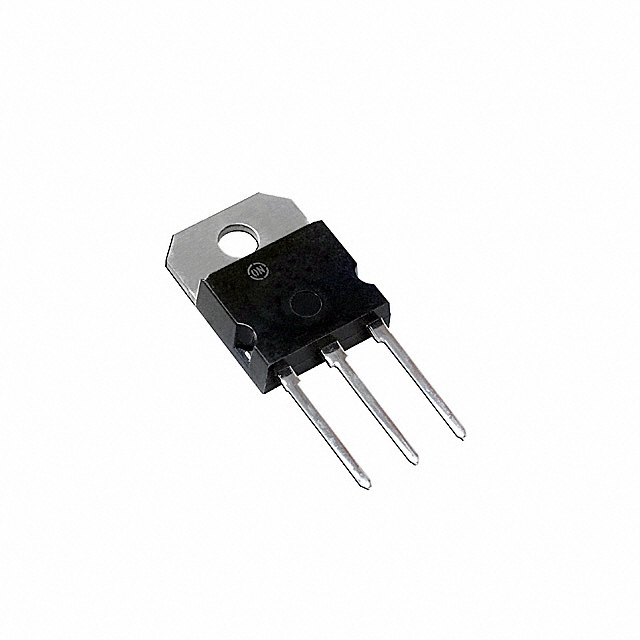

The BU323Z is a planar, monolithic, high voltage power Darlington with a built-in active zener clamping circuit. This device is specifically designed for unclamped, inductive applications such as electronic ignition, switching regulators and motor control.
Features
---
|
Integrated High-Voltage Active Clamp
Tight Clamping Voltage Window (350 V to 450 V) Guaranteed Over the -40 C to +125 C Temperature Range
Clamping Energy Capability 100% Tested in a Live Ignition Circuit
High DC Current Gain/Low Saturation Voltages Specified Over Full Temperature Range
Design Guarantees Operation in SOA at All Times
Offered in Plastic SOT-93/TO-218 Type or TO-220 Packages
These devices are available in Pb-free package(s). Specifications herein apply to both standard and Pb-free devices. Please see our website at www.onsemi.com for specific Pb-free orderable part numbers, or contact your local ON Semiconductor sales office or representative.

Show

BU323Z Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-218-3
Voltage Rating (DC)	35.0 V
Current Rating	10.0 A
Polarity	NPN
Breakdown Voltage (Collector to Emitter)	350 V
Continuous Collector Current	10A
hFE Min	500 @5A, 4.6V
hFE Max	3400
Input Power (Max)	150 W
	Show
Operating Temperature	-65℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	30
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
