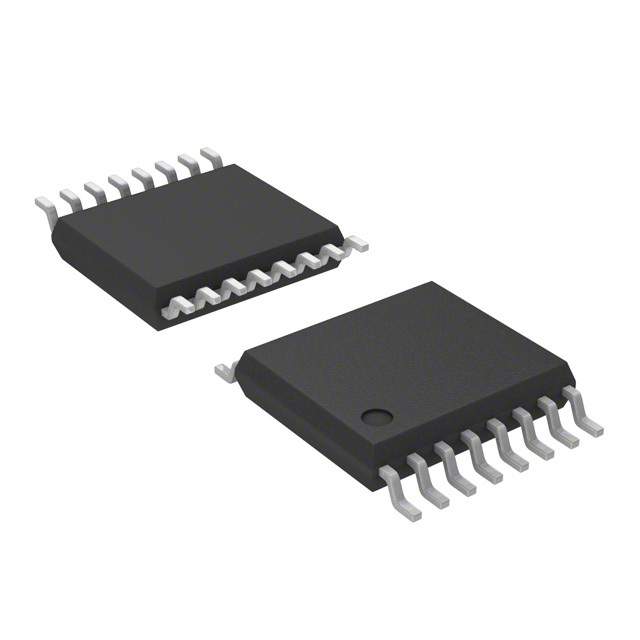

Image is for your reference only,please check specifications for details
- ADS8681IPW - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC83514851
-
Category:Analog to Digital, ADC IC
-
Package:TSSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:16Bit, 1MSPS, 5V SAR ADC with Integrated Analog Front End & Bipolar Inputs 16-TSSOP -40℃ to 125℃
-
Stock Locations:
-
Availability:315 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 7.04
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 16 Bit Analog to Digital Converter 1 Input 1 SAR 16-TSSOP
ADS8681IPW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | TSSOP-16 |
| Supply Voltage (DC) | 4.75V (min) |
| Number of Channels | 1 Channel |
| Number of Positions | 16 Position |
| Number of Bits | 16 Bit |
| Sample Rate | 1 Msps |
| Power Consumption | 42 mW |
| Number of ADCs | 1 ADC |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 1 Channel |
| Supply Voltage (Max) | 5.25 V |
| Supply Voltage (Min) | 4.75 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
