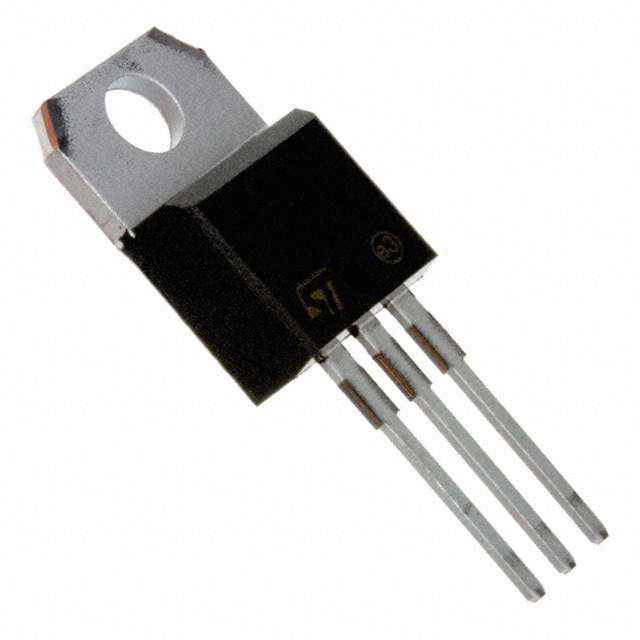

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- • Typical application (220V mains unless otherwise specified)
- • Integrated antisaturation and protection network
- • According to tube impedance
- 120V AC mains
- 277V AC mains
- 340V AC mains
- As PFC 220V AC mains
- Suffix D = Integrated free-wheeling diode
- ST preferred products in bold
- Devices in green to be used in pairs
BUL1203E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-220-3 |
| Polarity | NPN |
| Power Dissipation | 100 W |
| Breakdown Voltage (Collector to Emitter) | 550 V |
| Continuous Collector Current | 5A |
| hFE Min | 9 @2A, 5V |
| Input Power (Max) | 100 W |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -65 ℃ |
| Power Dissipation (Max) | 100000 mW |
| Show | |
| Size-Width | 4.6 mm |
| Operating Temperature | -65℃ ~ 150℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
