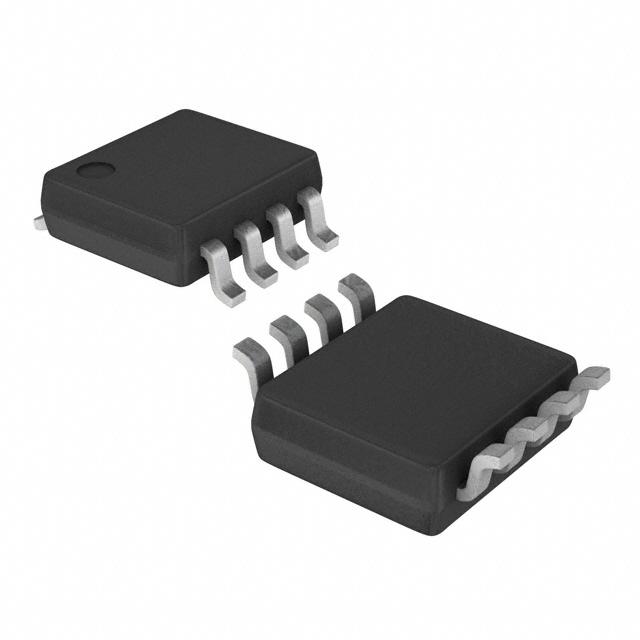

INA225AQDGKRQ1 - TI
Manufacturer:
TI
ManyChip's Part#:
MC8994450
Category:
Amplifier
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
Automotive, 36V Prog. Gain, Bi-Directional, Zero-Drift, High-Speed Voltage Out Current Sense Amp 8-VSSOP -40℃ to 125℃
Stock Locations:
Availability:
5,500 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.86

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The INA225-Q1 is a voltage-output, current-sense amplifier that senses drops across current-sensing resistors at common-mode voltages that vary from 0 V to 36 V, independent of the supply voltage. The device is a bidirectional, current-shunt monitor that allows an external reference to be used to measure current flowing in both directions across a current-sensing resistor.
Four discrete gain levels are selectable using the two gain-select terminals (GS0 and GS1) to program gains of 25 V/V, 50 V/V, 100 V/V, and 200 V/V. The low-offset, zero-drift architecture and precision gain values enable current-sensing with maximum drops across the shunt as low as 10 mV of full-scale, while maintaining very high accuracy measurements over the entire operating temperature range.
The device operates from a single +2.7-V to +36-V power supply, drawing a maximum of 350 µA of supply current. The device is specified over the extended operating temperature range of –40°C to +125°C, and is offered in a VSSOP-8 package.
