Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

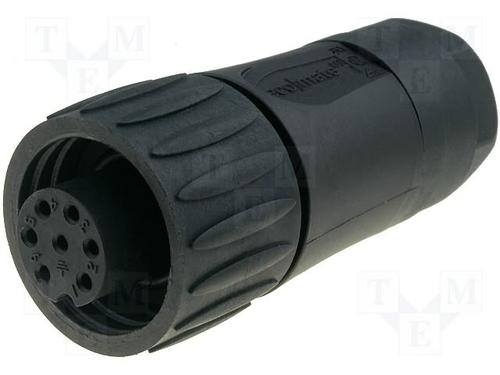

The C016 10D006 000 12 is a 6 + PE-position Female straight Cable Connector with strain relief and clamping ring, silver-plated contacts, blue backshell, 0.14 to 1.5mm² maximum wire gauge and round thread locking system. In design and conception the Ecomate program meets the high requirements for applications in industrial technology. The series is comprised of a large selection of housings and shapes and offers models with crimp termination.
Quick and easy to assemble
Ergonomically designed product range for safe handling
Housing components made from premium moulding material
>=10⁸R Insulation resistance
* Protection class IP65/67 in mated condition in accordance with DIN EN 60526

Show

C016 10D006 000 12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	7 Pin
Number of Contacts	7 Contact
Gender	Female
Contact Plating	Silver, Gold
Current Rating	13 A
Orientation	Straight
Flammability Rating	UL 94 V-0
Number of Positions	7 Position
Voltage Rating	250 V
	Show
Size-Length	73 mm
Housing Color	Black, Blue
Color	Black
Insulation Material	Plastic
Operating Temperature	-40℃ ~ 125℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
