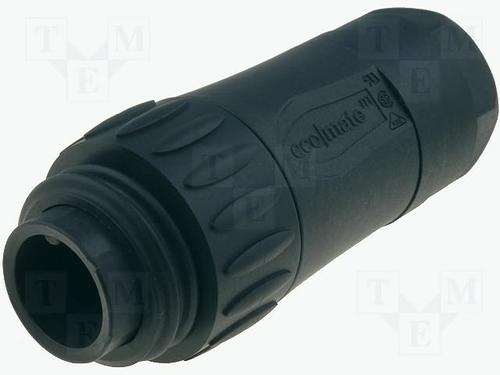

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The Ecomate C016 series Circular Connector for use with plant construction and machine building. In design and conception the program meets the high requirements for applications in industrial technology. Easy operation, reduced dimensions and a more robust design are only a few of the features of the series. The connector is used for measuring and controlling applications as well as for power supply technology. The series is comprised of a large selection of housings and shapes and offers models with screw, solder and crimp termination. It is suitable for the 6 to 12.5mm cable.
Housing components made from premium moulding material
Cable housing straight or angled
Clamping ring or internal strain relief
Quick and easy assembly
Screwed cable gland with clamping ring
Strain relief and mounted gasket all in one component
Robust thread for the screwed cable gland
Ergonomically designed product range for safe handling
Pre-loaded ground contact
Fastening for the protective caps on the housing of the receptacles
Protection class IP65/67 in mated condition in accordance with DIN EN 60526

Show

C016 10H006 000 12 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Number of Pins	7 Pin
Number of Contacts	7 Contact
Gender	Male
Contact Plating	Silver, Gold
Current Rating	13 A
Orientation	Straight
Flammability Rating	UL 94 V-0
Number of Positions	7 Position
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	250 V
	Show
Size-Length	73 mm
Housing Color	Black, Blue
Color	Black
Insulation Material	Plastic
Operating Temperature	-40℃ ~ 125℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
