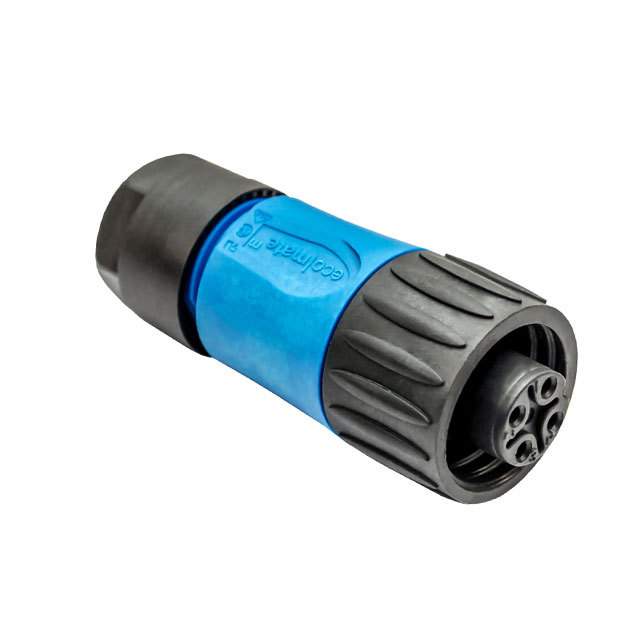

Image is for your reference only,please check specifications for details

C016 20D003 100 10 - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC13263458
Category:
Circular Connector, Connector Circular
Datasheet:
Datasheet 3D Model
Description:
Connector: circular; plug; PIN:4; female; screw terminal; 400V; 16A
Stock Locations:
Availability:
271 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 11.51

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The C016 20D003 100 10 from Amphenol is an ecomate circular female cable connector with 3 + PE contacts. The ecomate series provide easy operation, reduced dimensions, robust design, quick and easy assembly. This connector"s main area of application is in the field of plant construction and machine building. It is used for measuring and controlling applications as well as for power supply technology. This ergonomically designed connectors are approved by UL E63093, CSA 48932, VDE 1781/1780, SEV 00.0394 standards and designed for safe handling.
Silver plated contacts and screw termination
Cable diameter from 6mm to 12.5mm
Rated voltage of 400V according to DIN EN 60664-1/IEC 60664-1 standard
Contact resistance is less than or equal to 5mohm according to DIN EN 60512-2/IEC 60512-2 (test 2a)
Current carrying capacity of 16A at 55°C according to DIN EN 60512-3/IEC 60512-2 (test 5b)
Operating temperature range from -40°C to 100°C
IP67/IP65 degree of protection in accordance with DIN EN 60529/IEC 60529 standard
Blue colour polyamide (PA6/PA6.6) housing
Maximum wire gauge of 2.5mm²
Strain relief with clamping ring

Show

C016 20D003 100 10 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Number of Pins	4 Pin
Number of Contacts	4 Contact
Gender	Female
Contact Plating	Silver
Current Rating	16 A
Insulation Resistance	10 MΩ
Orientation	Straight
Flammability Rating	UL 94 V-0
Number of Positions	4 Position
Contact Resistance	5 mΩ
Number of Mating Cycles	500 Cycle
Operating Temperature (Max)	100 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	400 V
	Show
Color	Blue
Operating Temperature	-40℃ ~ 100℃
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
