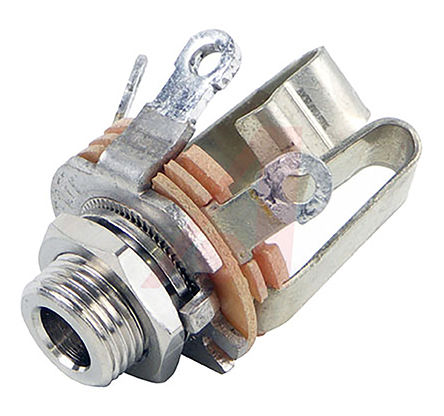

- C12BX - Switchcraft / Conxall
-
Manufacturer:Switchcraft / Conxall
-
ManyChip's Part#:MC24442113
-
Category:Audio Connector
-
Package:Metal
-
Datasheet:Datasheet 3D Model
-
Description:Conn 1/4" Phone Jack F 3POS Solder Lug ST Panel Mount 3 Terminal 1Port
-
Stock Locations:
-
Availability:258 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.53
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Make your product"s components work properly with the 1/4" phone jack C12BX audio and video connector from Switchcraft. This F connector has 3 F contacts. It has a female type gender. It has a straight body orientation. It has a maximum voltage rating of 25 VDC. This connector has a single port. This device has a maximum current rating of 1 A. C12BX is housed in plastic. This part has an operating temperature range of -20 °C to 65 °C. This product is 19.05 mm long and 32.41 mm. Its 3 terminals use the solder lug termination method.
C12BX Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Panel, Solder |
| Case/Package | Metal |
| Number of Contacts | 3 Contact |
| Gender | Male |
| Contact Plating | Nickel |
| Current Rating | 1 A |
| Current Rating (Max) | 1 A |
| Operating Temperature (Max) | 65 ℃ |
| Operating Temperature (Min) | -20 ℃ |
| Voltage Rating (Max) | 25 VDC |
| Voltage Rating | 25 VDC |
| Show | |
| Size-Length | 19.05 mm |
| Size-Width | 32.41 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -20℃ ~ 65℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536694050 |
| ECCN Code | EAR99 |
