Description
- The C8051F12x and C8051F13x device families are fully integrated mixed-signal System-on-a-Chip MCUs with 64 digital I/O pins (100-pin TQFP package) or 32 digital I/O pins (64-pin TQFP package). Highlighted features are listed below. Refer to Table 1.1 for specific product feature selection.
- • High-Speed pipelined 8051-compatible CIP-51 microcontroller core (100 MIPS or 50 MIPS)
- • In-system, full-speed, non-intrusive debug interface (on-chip)
- • True 12 or 10-bit 100 ksps ADC with PGA and 8-channel analog multiplexer
- • True 8-bit 500 ksps ADC with PGA and 8-channel analog multiplexer (C8051F12x Family)
- • Two 12-bit DACs with programmable update scheduling (C8051F12x Family)
- • 2-cycle 16 by 16 Multiply and Accumulate Engine (C8051F120/1/2/3 and C8051F130/1/2/3)
- • 128k bytes or 64k bytes of in-system programmable FLASH memory
- • 8448 (8k + 256) bytes of on-chip RAM
- • External Data Memory Interface with 64k byte address space
- • SPI, SMBus/I2C, and (2) UART serial interfaces implemented in hardware
- • Five general purpose 16-bit Timers
- • Programmable Counter/Timer Array with 6 capture/compare modules
- • On-chip Watchdog Timer, VDD Monitor, and Temperature Sensor

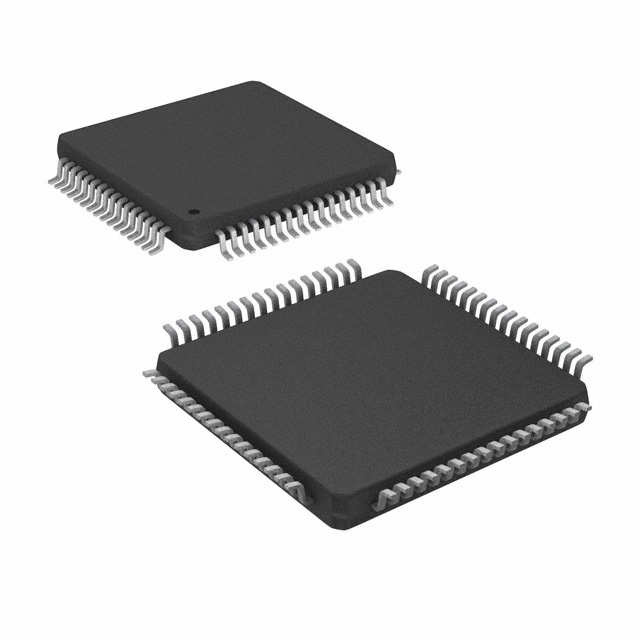

C8051F133 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 64 Pin |
| Case/Package | TQFP-64 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Number of Channels | 6 Channel |
| Clock Speed | 100MHz (max) |
| RAM Memory Size | 8.25K x 8 |
| FLASH Memory Size | 64000 B |
| Number of I/O Pins | 32 IO |
| Access Time | 100 µs |
| Core Architecture | 8051 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 10 mm |
| Size-Width | 10 mm |
| Size-Height | 1 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Not Recommended |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
