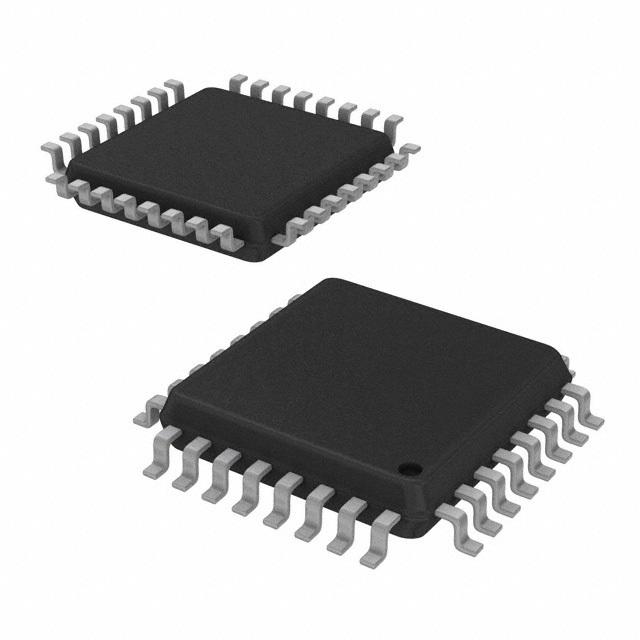

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- C8051F31x devices are fully integrated mixed-signal System-on-a-Chip MCUs. Highlighted features are listed below. Refer to Table 1.1for specific product feature selection.
- • High-speed pipelined 8051-compatible microcontroller core (up to 25 MIPS)
- • In-system, full-speed, non-intrusive debug interface (on-chip)
- • True 10-bit 200 ksps 25-channel single-ended/differential ADC with analog multiplexer (C8051F310/1/2/3/6)
- • Precision programmable 25 MHz internal oscillator
- • 16 kB (C8051F310/1/6/7) or 8 kB (C8051F312/3/4/5) of on-chip Flash memory
- • 1280 bytes of on-chip RAM
- • SMBus/I2C, Enhanced UART, and Enhanced SPI serial interfaces implemented in hardware
- • Four general-purpose 16-bit timers
- • Programmable Counter/Timer Array (PCA) with five capture/compare modules and Watchdog Timer function
- • On-chip Power-On Reset, VDDMonitor, and Temperature Sensor
- • On-chip Voltage Comparators
- • 29/25/21 Port I/O (5 V tolerant)
C8051F310 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LQFP-32 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Number of Channels | 5 Channel |
| Clock Speed | 25.0MHz (max) |
| RAM Memory Size | 1.25K x 8 |
| FLASH Memory Size | 16000 B |
| Number of I/O Pins | 29 IO |
| Access Time | 25.0 µs |
| Core Architecture | 8051 |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Obsolete |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
