Description
- System Overview
- C8051F350/1/2/3 devices are fully integrated mixed-signal System-on-a-Chip MCUs. Highlighted features
- are listed below. Refer to Ta b l e 1.1for specific product feature selection.
- • High-speed pipelined 8051-compatible microcontroller core (up to 50 MIPS)
- • In-system, full-speed, non-intrusive debug interface (on-chip)
- • 24 or 16-bit single-ended/differential ADC with analog multiplexer
- • Two 8-bit Current Output DACs
- • Precision programmable 24.5 MHz internal oscillator
- • 8 kB of on-chip Flash memory
- • 768 bytes of on-chip RAM
- • SMBus/I2C, Enhanced UART, and SPI serial interfaces implemented in hardware
- • Four general-purpose 16-bit timers
- • Programmable counter/timer array (PCA) with three capture/compare modules and watchdog timer function
- • On-chip power-on reset, VDDmonitor, and temperature sensor
- • On-chip voltage comparator
- • 17 Port I/O (5 V tolerant)
- Analog Peripherals
- \- 24 or 16-Bit ADC
- •No missing codes
- • 0.0015% nonlinearity
- • Programmable conversion rates up to 1 ksps
- • 8-Input multiplexer
- • 1x to 128x PGA
- • Built-in temperature sensor
- \- Two 8-Bit Current Output DACs
- \- Comparator
- • Programmable hysteresis and response time
- • Configurable as interrupt or reset source
- • Low current (0.4 µA)
- On-chip Debug
- \- On-chip debug circuitry facilitates full speed, non intrusive in-system debug (No emulator required)
- \- Provides breakpoints, single stepping, inspect/modify memory and registers
- \- Superior performance to emulation systems using ICE-Chips, target pods, and sockets
- \- Low Cost, CompleteDevelopment Kit
- Supply Voltage 2.7 to 3.6 V
- \- Typical operating current: 5.8 mA @ 25 MHz;
- 11 µA @ 32 kHz
- \- Typical stop mode current: 0.1 µA
- Temperature Range: –40 to +85 °C
- High Speed 8051 µC Core
- \- Pipelined Instruction architecture; executes 70% of instructions in 1 or 2 system clocks
- \- Up to 50 MIPS throughput
- \- Expanded interrupt handler
- Memory
- \- 768 Bytes (256 + 512) On-Chip RAM
- \- 8 kB Flash; In-system programmable in 512-byte Sectors
- Digital Peripherals
- \- 17 Port I/O; All 5 V tolerant with high sink current
- \- Enhanced UART, SMBus™, and SPI™ Serial Ports
- \- Four general purpose 16-bit counter/timers
- \- 16-bit programmable counter array (PCA) with three capture/compare modules
- \- Real time clock mode using PCA or timer and external clock source
- Clock Sources
- \- Internal Oscillator: 24.5 MHz with ± 2% accuracy supports UART operation
- \- External Oscillator: Crystal, RC, C, or clock (1 or 2 pin modes)
- \- Clock multiplier to achieve 50 MHz internal clock
- \- Can switch between clock sources on-the-fly
- 28-Pin QFN or 32-Pin LQFP Package
- \- 5 x 5 mm PCB footprint with 28-QFN

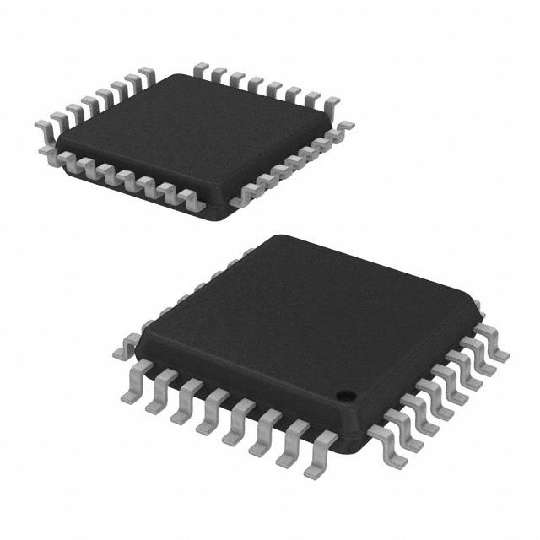

C8051F352 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | LQFP-32 |
| Supply Voltage (DC) | 3.30 V, 3.60 V (max) |
| Number of Channels | 3 Channel |
| Clock Speed | 50.0MHz (max) |
| RAM Memory Size | 768 x 8 |
| FLASH Memory Size | 8000 B |
| Number of I/O Pins | 17 IO |
| Access Time | 50.0 µs |
| Core Architecture | 8051 |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | 40 ℃ |
| Show | |
| Size-Length | 7 mm |
| Size-Width | 7 mm |
| Size-Height | 1.4 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Obsolete |
| Packaging | Tray |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
