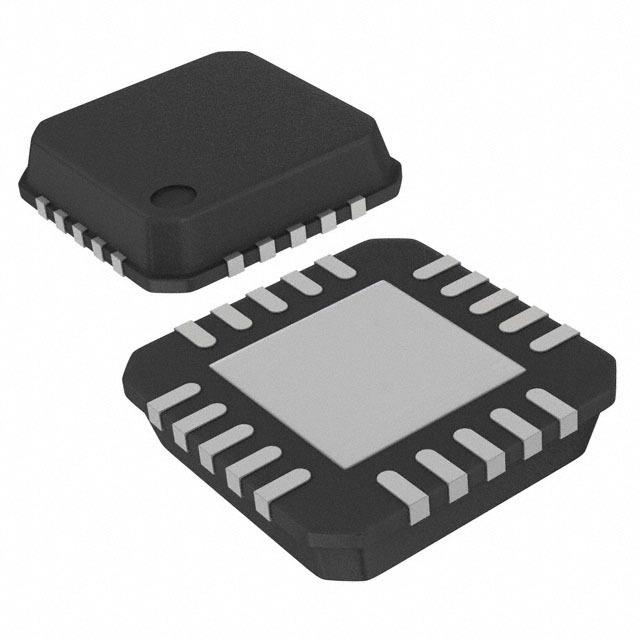

Image is for your reference only,please check specifications for details

CC2500RTK - TI
Manufacturer:
TI
ManyChip's Part#:
MC91609685
Category:
RF Module
Package:
QFN-20
Datasheet:
Datasheet 3D Model
Description:
Low Cost, Low-Power 2.4GHz RF Transceiver Designed for Low-Power Wireless Apps in the 2.4GHz ISM B 20-VQFN -40℃ to 85℃
Stock Locations:
Availability:
9,958 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.89

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

CC2500RTK Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	QFN-20
Frequency	2.4 GHz
Supply Voltage (DC)	3.60V (max)
Number of Channels	1 Channel
Number of Positions	20 Position
Data Rate	500 kbps
FLASH Memory Size	0 B
Output Power	1 dBm
Standby Current	400 nA
Antenna Connection	Differential
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.8V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Obsolete
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
