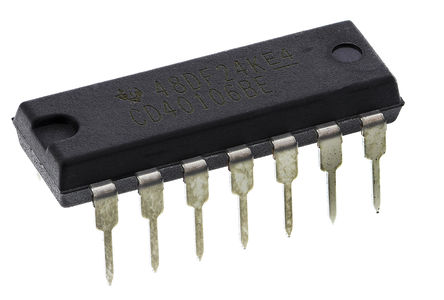

Image is for your reference only,please check specifications for details

CD40106BE - TI
Manufacturer:
TI
ManyChip's Part#:
MC37421
Category:
Logic Control, Logic Gate IC
Package:
PDIP-14
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS CD40106BE Inverter, Schmitt Trigger, CD40106, 1Input, 6.8mA, 3V to 18V, DIP-14
Stock Locations:
Availability:
208 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.36

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

CD40106BE consists of six Schmitt-trigger circuits. Each circuit functions as an inverter with Schmitt-trigger action on the input. The trigger switches at different points for positive- and negative-going signals. The difference between the positive-going voltage (VP) and the negative-going voltage (VN) is defined as hysteresis voltage (VH).
Schmitt trigger action with no external components
Hysteresis voltage typ. at 0.9V at VDD = 5V, 2.3V at VDD = 10V, and 3.5V at VDD = 15V
Noise immunity greater than 50%
No limit on input rise and fall times
Standardised, symmetrical output characteristics
100% tested for quiescent current at 20sV
Maximum input current of 1µA at 18 V over full package temperature range; 100nA at 18V and 25°C
Low VDD to VSS current during slow input ramp

Show

CD40106BE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	14 Pin
Case/Package	PDIP-14
Supply Voltage (DC)	3.00V ~ 18.0V
Operating Voltage	3V ~ 18V
Number of Outputs	6 Output
Output Current	6.8 mA
Number of Circuits	6 Circuit
Number of Channels	6 Channel
Number of Positions	14 Position
Number of Bits	6 Bit
Propagation Delay Max (tpd)	280 ns
Voltage Nodes	5.00 V, 10.0 V, 15.0 V
Power Dissipation	100 mW
Number of Gates	6 Gate
Input Capacitance	5.00 pF
Output Current Drive	-1.00 mA
Number of Inputs	6 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	3V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	3 V
	Show
Size-Length	19.3 mm
Size-Width	6.35 mm
Size-Height	4.57 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	ECL99
HK STC License	NLR
