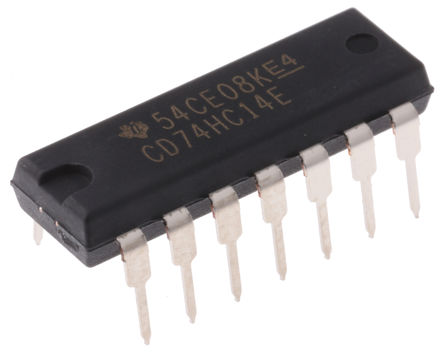

Image is for your reference only,please check specifications for details
Updated at 03/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CD74HC14E is a CMOS high-speed logic hex Schmitt-triggered Inverter with 2 to 6V operation and 55 to 125°C wide operating temperature range. This inverter features 10 LSTTL loads standard outputs and 15 LSTTL loads bus driver outputs.
- Unlimited input rise and fall times
- Exceptionally high noise immunity
- Balanced propagation delay and transition times
- Significant power reduction compared to LSTTL logic ICs
CD74HC14E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 14 Pin |
| Case/Package | PDIP-14 |
| Supply Voltage (DC) | 2.00V ~ 6.00V |
| Number of Outputs | 6 Output |
| Output Current | 5.2 mA |
| Number of Circuits | 6 Circuit |
| Number of Channels | 6 Channel |
| Number of Positions | 14 Position |
| Number of Bits | 6 Bit |
| Propagation Delay Max (tpd) | 23.0 ns |
| Number of Gates | 6 Gate |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 2V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 19.3 mm |
| Size-Width | 6.35 mm |
| Size-Height | 4.57 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
| ECCN Code | EAR99 |
