CD74HC14PW - TI
Manufacturer:
TI
ManyChip's Part#:
MC9633061
Category:
Logic Control, Logic Gate IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:

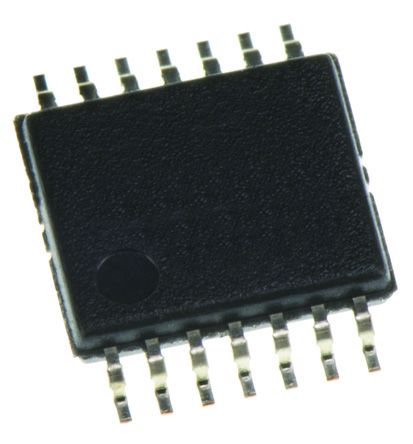

TEXAS INSTRUMENTS CD74HC14PW Inverter, Schmitt Trigger, 74HC14, 1Input, 5.2mA, 2V to 6V, TSSOP-14
Stock Locations:
Availability:
216 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.47

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CD74HC14PW is a high speed CMOS logic Hex Schmitt-triggered Inverter contains six circuits. The device operates at a voltage range of 2 to 6V and provides significant power reduction compared to LSTTL logic ICs.
Unlimited input rise and fall times
Exceptionally high noise immunity
balanced propagation delay and transition times
30% High noise immunity
Green product and no Sb/Br

Show

CD74HC14PW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Voltage (DC)	2.00V ~ 6.00V
Number of Outputs	6 Output
Output Current	5.2 mA
Number of Circuits	6 Circuit
Number of Positions	14 Position
Number of Bits	6 Bit
Propagation Delay Max (tpd)	23.0 ns
Number of Gates	6 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	5.1 mm
Size-Width	4.5 mm
Size-Height	1.05 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	Yes
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
