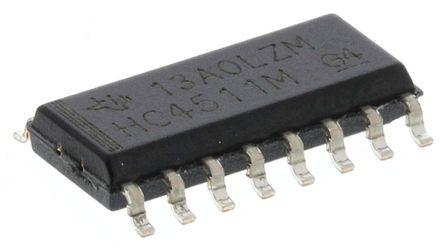

Image is for your reference only,please check specifications for details
- CD74HC4511M - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC4404644
-
Category:Logic Controller, Logic IC
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:BCD to 7 Segment Decoder / Driver / Latch, HC Family, 7 Output, 2V to 6V, SOIC-16
-
Stock Locations:
-
Availability:72 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.58
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CD74HC4511M is a 1-channel high speed CMOS logic BCD-to-7 Segment Latch/Decoder/Driver with four address inputs D0 to D3, an active-low blanking (BL) input, lamp-test (LT) input and a latch-enable (LE) input that, when high, enables the latches to store the BCD inputs. When LE is low, the latches are disabled, making the outputs transparent to the BCD inputs. This device has standard-size output transistors, but is capable of sourcing (at standard VOH levels) up to 7.5mA at 4.5V. The HC types can supply up to 10mA at 6V.
- Input latches for BCD code storage
- Lamp test and blanking capability
- Balanced propagation delays and transition times
- Significant power reduction compared to LSTTL logic ICs
- CMOS Input compatibility
- Green product and no Sb/Br
CD74HC4511M Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Supply Voltage (DC) | 2.00V (min) |
| Number of Outputs | 7 Output |
| Output Voltage | 2V ~ 6V |
| Output Current | 4.00 mA |
| Supply Current | 8 µA |
| Number of Circuits | 2 Circuit |
| Number of Positions | 16 Position |
| Number of Bits | 7 Bit |
| Power Dissipation | 114 mW |
| Bandwidth | 28.0 MHz |
| Number of Inputs | 4 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 2V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 2 V |
| Input Voltage | 0.5V ~ 1.5V |
| Show | |
| Size-Length | 9.9 mm |
| Size-Width | 3.91 mm |
| Size-Height | 1.58 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
