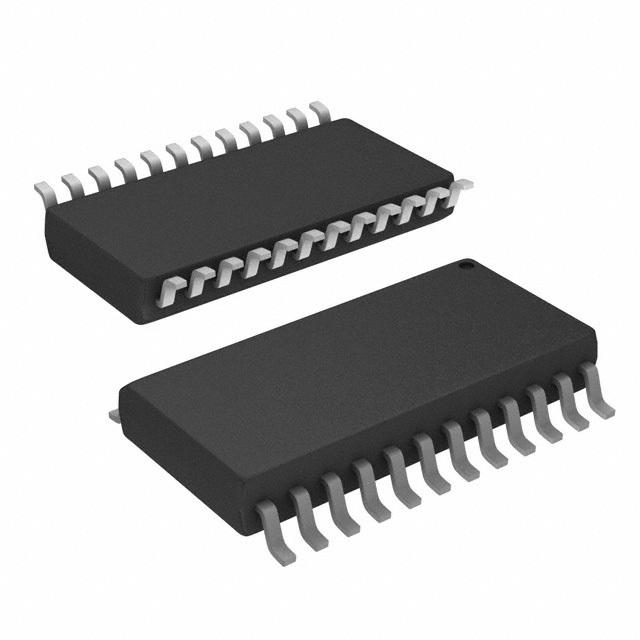

Image is for your reference only,please check specifications for details
- CD74HCT4067QM96Q1 - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC15341193
-
Category:Interface IC, Interface Controller
-
Package:SOIC-24
-
Datasheet:Datasheet 3D Model
-
Description:Automotive Catalog High Speed CMOS 16Channel Analog Multiplexer/Demultiplexer with TTL Inputs 24-SOIC -40℃ to 125℃
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.52
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CD74HCT4067-Q1 device is a digitally controlled analog switch that utilizes silicon-gate CMOS technology to achieve operating speeds similar to LSTTL, with the low power consumption of standard CMOS integrated circuits.
- This analog multiplexer and demultiplexer controls analog voltages that may vary across the voltage supply range. It is a bidirectional switch, thus allowing any analog input to be used as an output and vice-versa. The switch has low (on) resistance and low (off) leakages. In addition, the device has an enable control that, when high, disables all switches to their off state.
CD74HCT4067QM96Q1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SOIC-24 |
| Number of Outputs | 1 Output |
| Number of Circuits | 1 Circuit |
| Number of Channels | 16 Channel |
| Number of Bits | 16 Bit |
| Propagation Delay Max (tpd) | 15.0 ns |
| Voltage Nodes | 5.00 V, 4.50 V |
| Number of Inputs | 16 Input |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| 3dB Bandwidth | 89 MHz |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
