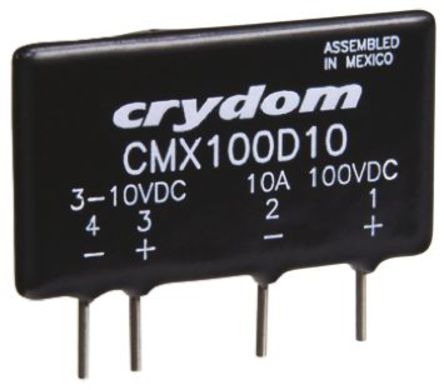

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The CMX series DC output SPST-NO Solid State Relay uses MOSFET output for high switching capabilities.
- MOSFET output
- Extra low ON-state resistance
- Input status LED
- Hazard of electric shock, explosion or arc flash. Disconnect all power before installing or working with this equipment. Verify all connections and replace all covers before turning ON power.
CMX200D3 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Operating Voltage | 200V (max) |
| Current Rating | 3 A |
| Capacitance | 15 pF |
| Output Voltage | 0V ~ 200V |
| Output Current | 3000 mA |
| Contacts Type | SPST-NO |
| Load Current | 3 A |
| Input Current | 15 mA |
| Isolation Voltage | 2500 v |
| Input Voltage (Max) | 10 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 200 V |
| Input Current (Min) | 15 mA |
| Load Current (Max) | 3 Arms |
| Load Current (Min) | 0 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 200 VDC |
| Operating Voltage (Min) | 0 VDC |
| Operating Voltage (Max) | 200 VDC |
| Input Voltage | 3VDC ~ 10VDC |
| Show | |
| Size-Length | 43.1 mm |
| Size-Width | 7.6 mm |
| Size-Height | 25.4 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536490080 |
| ECCN Code | EAR99 |
