Description

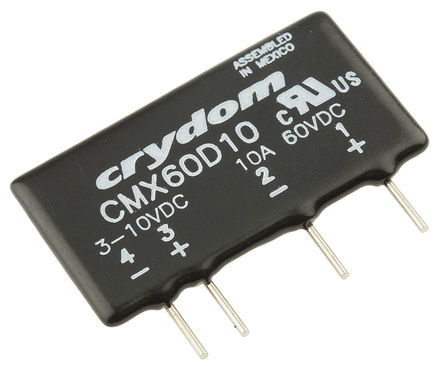

- The CMX60D10 is a 1-phase Solid State Relay with thermally conductive epoxy encapsulation, SPST-NO contact, DC switch mode and through hole terminals. This CMX-series PCB mount relay features low on-state impedance.
- DC control
- MOSFET Output
- 0.18VDC Maximum on-state voltage drop
- 300R Nominal input impedance
- 2500Vrms Dielectric strength
- 1ms Turn-on and 300µsec turn-off maximum time
- -30 to 80°C Ambient operating temperature range
- Disconnect all power before installing or working with this equipment. Risk of material damage and hot enclosure.
CMX60D10 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 4 Pin |
| Case/Package | SIP-4 |
| Supply Voltage (DC) | 3.00V (min) |
| Operating Voltage | 60.0V (max) |
| Current Rating | 10 A |
| Insulation Resistance | 1000 MΩ |
| Capacitance | 15 pF |
| Output Voltage | 0V ~ 60V |
| Output Current | 10000 mA |
| Contacts Type | SPST-NO |
| Load Current | 10 A |
| Input Current | 15 mA |
| Isolation Voltage | 2500 v |
| Input Impedance | 300 Ω |
| Forward Current | 15 mA |
| Input Voltage (Max) | 10 V |
| Input Voltage (Min) | 3 V |
| Output Voltage (Max) | 60 V |
| Input Current (Min) | 15 mA |
| Load Current (Max) | 10 Arms |
| Load Current (Min) | 0 A |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -30 ℃ |
| Voltage Rating | 60 VDC |
| Operating Voltage (Min) | 0 VDC |
| Operating Voltage (Max) | 60 VDC |
| Input Voltage | 3VDC ~ 10VDC |
| Show | |
| Size-Length | 43.1 mm |
| Size-Width | 7.6 mm |
| Size-Height | 25.4 mm |
| Operating Temperature | -30℃ ~ 80℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| HTS Code | 8536410060 |
| ECCN Code | EAR99 |
