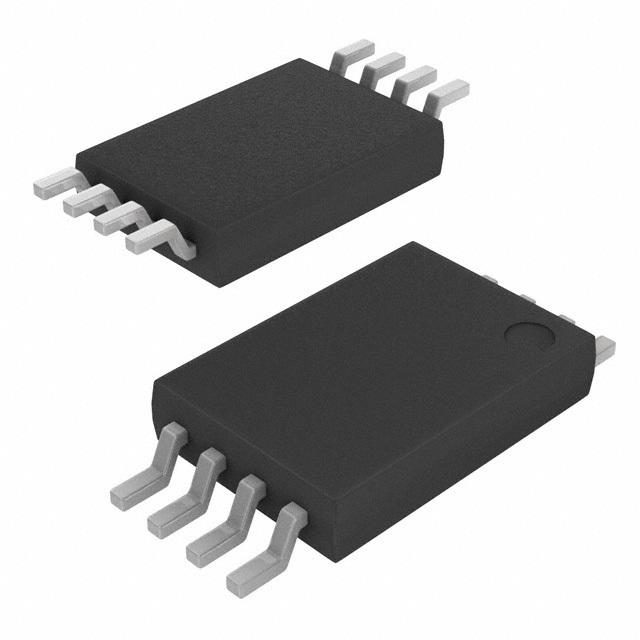

Image is for your reference only,please check specifications for details

CS70P - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC50287837
Category:
Amplifier, Buffer IC
Package:
TSSOP-8
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS CS70P Current Sense Amplifier, High Voltage, 1 Amplifier, 10μA, TSSOP, 8Pins, -40℃, 125℃
Stock Locations:
Availability:
100 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.22

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The CS70P is a high-side current sense Operational Amplifier for use with precision current sources. The CS70 measures a small differential voltage on a high-side shunt resistor and translates it into a ground-referenced output voltage. The gain is adjustable to four different values from 20V/V up to 100V/V by two selection pins. The input common-mode and power-supply voltages are independent. The common-mode voltage can range from 2.9 to 70V in the single supply configuration or be offset by an adjustable voltage supplied on the Vcc- pin in the dual supply configuration. With a current consumption lower than 360µA and a virtually null input leakage current in standby mode, the power consumption in the applications is minimized.
Wide input common-mode voltage range
Low quiescent current
Independent supply and input common-mode voltages
Buffered output
-16 to 75V (reversed battery and load-dump) Wide common-mode surviving range
300µA Low current consumption

Show

CS70P Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	TSSOP-8
Supply Voltage (DC)	2.90V (min)
Supply Current	200 µA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	105 dB
Bandwidth	700 kHz
Gain Bandwidth Product	0.7 MHz
Input Offset Voltage	500 µV
Input Bias Current	10 µA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	700 kHz
Accuracy	2.5 %
Minimum CMRR Range	90 dB
Supply Voltage (Max)	70 V
Supply Voltage (Min)	2.9 V
	Show
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
