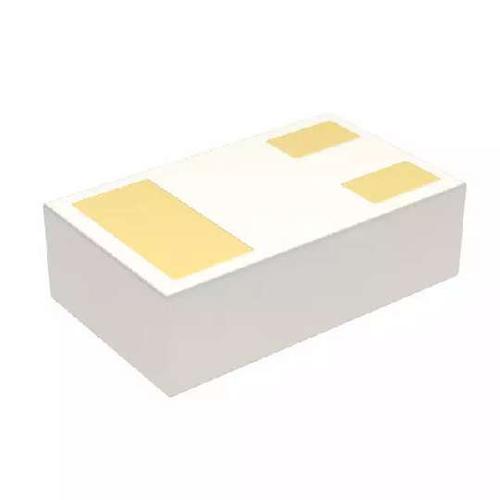

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- This 140 mΩ, 12 V N-channel FemtoFET™ MOSFET technology is designed and optimized to minimize the footprint in many handheld and mobile applications. This technology is capable of replacing standard small signal MOSFETs while providing at least a 60% reduction in footprint size.
CSD13381F4 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 3 Pin |
| Case/Package | PICOSTAR-3 |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 180 mΩ |
| Polarity | N-CH |
| Power Dissipation | 500 mW |
| Threshold Voltage | 850 mV |
| Drain to Source Voltage (Vds) | 12 V |
| Breakdown Voltage (Drain to Source) | 12 V |
| Continuous Drain Current (Ids) | 2.1A |
| Rise Time | 1.5 ns |
| Input Capacitance (Ciss) | 200pF @6V(Vds) |
| Input Power (Max) | 500 mW |
| Fall Time | 3.8 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 500mW (Ta) |
| Show | |
| Size-Length | 1 mm |
| Size-Width | 0.64 mm |
| Size-Height | 0.35 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HK STC License | NLR |
