Description
- The NexFET power MOSFET has been designed to minimize losses in power conversion applications, and optimized for 5V gate drive applications.
- Optimized for 5V Gate Drive
- Ultralow Qg and Qgd
- Low Thermal Resistance
- Avalanche Rated
- Pb Free Terminal Plating
- RoHS Compliant
- Halogen Free
- SON 5-mm × 6-mm Plastic Package
- APPLICATIONS
- Notebook Point of Load
- Point-of-Load Synchronous Buck in Networking, Telecom and Computing Systems
- Optimized for Synchronous FET Applications

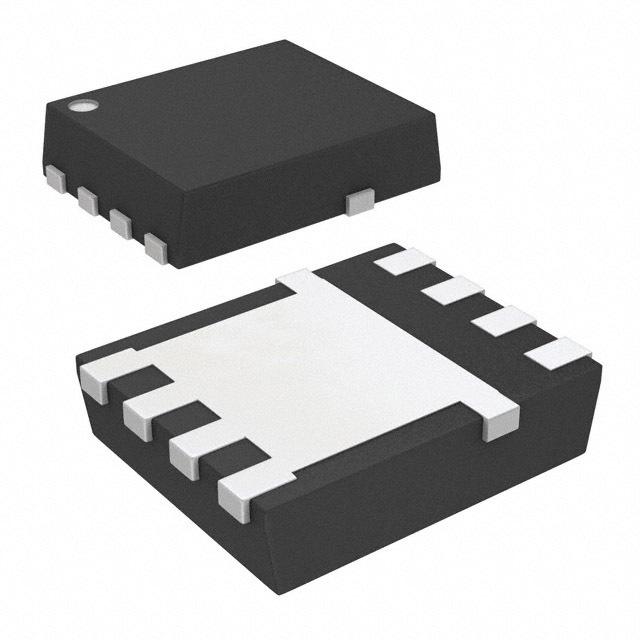

CSD17310Q5A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSON-FET-8 |
| Number of Channels | 1 Channel |
| Number of Positions | 8 Position |
| Drain to Source Resistance (on) (Rds) | 0.0039 Ω |
| Polarity | N-Channel |
| Power Dissipation | 3.1 W |
| Threshold Voltage | 1.3 V |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30 V |
| Continuous Drain Current (Ids) | 100 A |
| Rise Time | 11.5 ns |
| Input Capacitance (Ciss) | 1560pF @15V(Vds) |
| Input Power (Max) | 3.1 W |
| Fall Time | 5 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3.1W (Ta) |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 4.9 mm |
| Size-Height | 1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2015/06/15 |
