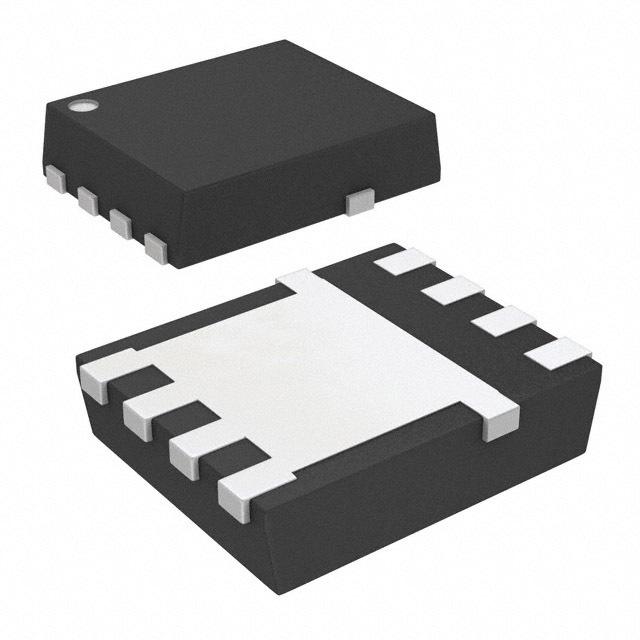

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Ultralow Qg and Qgd * Low Thermal Resistance * Avalanche Rated * Pb Free Terminal Plating * RoHS Compliant * Halogen Free * SON 5-mm × 6-mm Plastic Package
CSD17527Q5A Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSON-8 |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 15.5 mΩ |
| Polarity | N-CH |
| Power Dissipation | 3 W |
| Threshold Voltage | 1.6 V |
| Drain to Source Voltage (Vds) | 30 V |
| Breakdown Voltage (Drain to Source) | 30 V |
| Continuous Drain Current (Ids) | 13A |
| Rise Time | 8.2 ns |
| Input Capacitance (Ciss) | 506pF @15V(Vds) |
| Input Power (Max) | 3 W |
| Fall Time | 3.2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 3W (Ta) |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 4.9 mm |
| Size-Height | 1 mm |
| Operating Temperature | -55℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | |
| Packaging | Tape & Reel (TR) |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| ECCN Code | EAR99 |
