Description

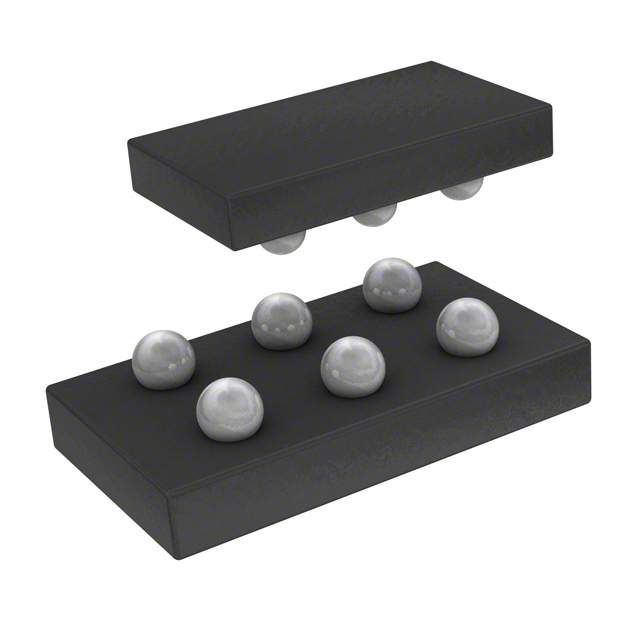

This 12-V, 9.9-mΩ, 2.2-mm × 1.15-mm LGA Dual NexFET™ power MOSFET is designed to minimize resistance and gate charge in a small footprint. Its small footprint and common drain configuration make the device ideal for battery pack applications in small handheld devices.

Show

CSD83325L Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	XFBGA-6
Number of Channels	2 Channel
Drain to Source Resistance (on) (Rds)	5.9 mΩ
Polarity	N-CH
Power Dissipation	2.3 W
Threshold Voltage	750 mV
Drain to Source Voltage (Vds)	12 V
Breakdown Voltage (Drain to Source)	±12 V
Continuous Drain Current (Ids)	8A
Rise Time	353 ns
Input Capacitance (Ciss)	902pF @6V(Vds)
Input Power (Max)	2.3 W
Fall Time	589 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	55 ℃
Power Dissipation (Max)	2300 mW
	Show
Size-Length	2.2 mm
Size-Width	1.15 mm
Size-Height	0.2 mm
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
