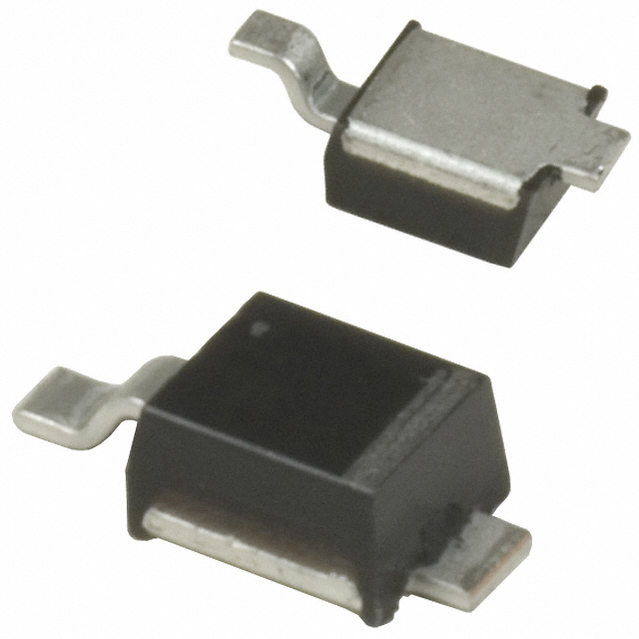

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Surface Mount Schottky Power Rectifier
POWERMITE® Power Surface Mount Package
The Schottky Powermite® employs the Schottky Barrier principle with a barrier metal and epitaxial construction that produces optimal forward voltage drop−reverse current tradeoff. The advanced packaging techniques provide for a highly efficient micro miniature, space saving surface mount Rectifier. With its unique heatsink design, the Powermite® has the same thermal performance as the SMA while being 50% smaller in footprint area, and delivering one of the lowest height profiles, < 1.1 mm in the industry. Because of its small size, it is ideal for use in portable and battery powered products such as cellular and cordless phones, chargers, notebook computers, printers, PDAs and PCMCIA cards. Typical applications are AC−DC and DC−DC converters, reverse battery protection, and “ORing” of multiple supply voltages and any other application where performance and size are critical.
Features
• Low Profile − Maximum Height of 1.1 mm
• Small Footprint − Footprint Area of 8.45 mm2
• Low VF Provides Higher Efficiency and Extends Battery Life
• Supplied in 12 mm Tape and Reel
• Low Thermal Resistance with Direct Thermal Path of Die on Exposed Cathode Heat Sink
• ESD Ratings: Human Body Model, 3B > 16000 V
Machine Model, C > 400 V
• Pb−Free Packages are Available

Show

MBRM120LT1 Specifications
