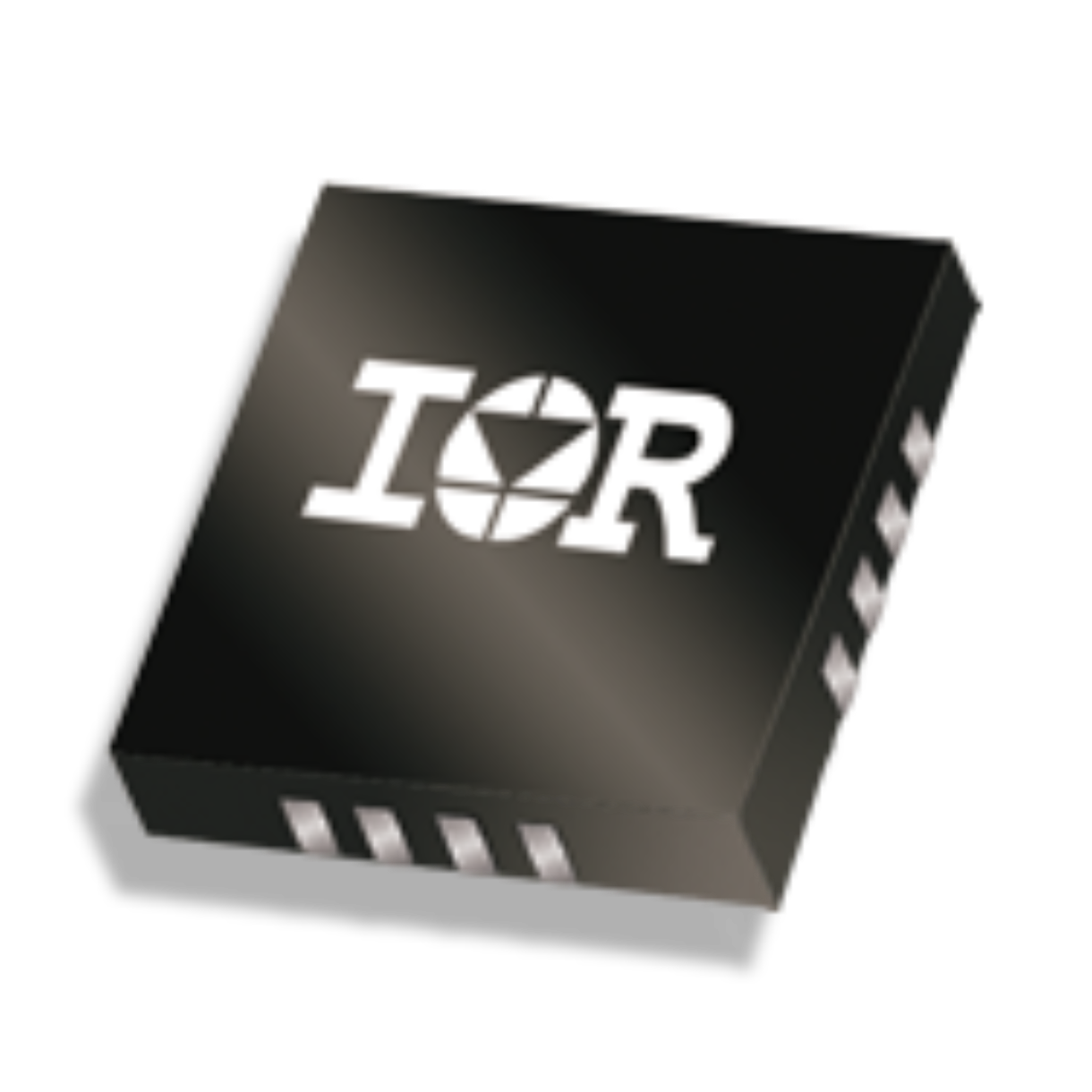

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Benefits:
Dual MOSFET drivers in single 16 pin QFN package
Multimode operation to configure the driver as either dual or doubler/interleaved mode drivers
Variable Gate drive from 4V to 13V to optimize system efficiency
5V VCC and VDRV capability for sleep states where only 5V is available
Large drivers designed to drive 3nF in < 12ns with any voltage from 5V to 12V (typ) supplied to the VDRV pin
Low side driver - 0.85Ohms source/0.38Ohms sink
High side driver - 1.1Ohms source/0.60Ohms sink
Propagation delays < 20ns
Integrated bootstrap diode on both drivers
Capable of high output switching frequencies from 150kHz up to greater than 1MHz
Compatible with our patented Active Tri-Level (ATL) PWM for fastest response to transient overshoot as well as industry standard 3.3V and 5V Tri-State signals in most modes
Non-overlap and under voltage protection
Thermally enhanced 16 pin QFN package
Lead free RoHS compliant package
Low Quiescent power to optimize efficiency
