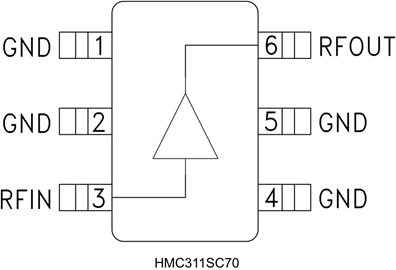

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HMC311SC70E is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) Gain Block MMIC SMT DC to 8 GHz amplifier. The amplifier can be used as either a cascadable 50R gain stage or to drive the LO port of HMC mixers with up to +15dBm output power. The HMC311SC70E offers 15dB of gain and an output IP3 of +30dBm while requiring only 54mA from a +5V supply. The Darlington topology results in reduced sensitivity to normal process variations and yields excellent gain stability over-temperature while requiring a minimal number of external bias components. This is ideal for cellular/PCS/3G, WiBro/WiMAX/4G, fixed wireless & WLAN, CATV and cable modem applications.
- P1dB Output power (+15dBm)
- Output IP3 (+30dBm)
- Cascadable, 50R I/O"s
- Single supply
- ESD sensitive device, take proper precaution while handling the device.
HMC311SC70E Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SC-70-6 |
| Frequency | 0Hz ~ 8GHz |
| Supply Voltage (DC) | 5.00V (max) |
| Supply Current | 74 mA |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Power Dissipation | 0.34 W |
| Output Power | 15.5 dBm |
| Gain | 13 dB |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 340 mW |
| Supply Voltage | 5 V |
| Supply Voltage (Max) | 5 V |
| Show | |
| Size-Length | 2.25 mm |
| Size-Width | 1.35 mm |
| Size-Height | 0.91 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Cut Tape (CT) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
| REACH SVHC Compliance | No SVHC |
