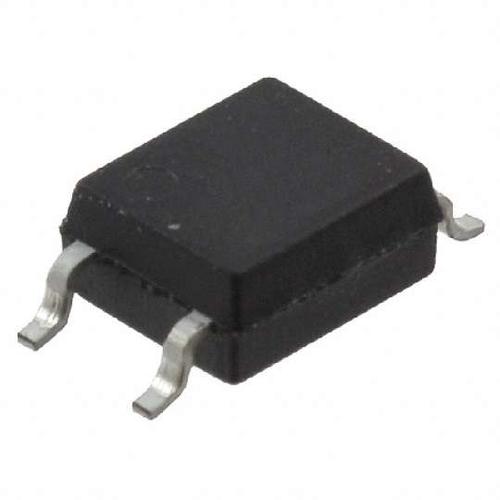

Image is for your reference only,please check specifications for details

FODM121 - Fairchild
Manufacturer:
Fairchild
ManyChip's Part#:
MC12536489
Category:
Optocoupler, Optoisolator
Package:
4-Mini-Flat
Datasheet:
Datasheet 3D Model
Description:
FAIRCHILD SEMICONDUCTOR FODM121 Optocoupler, Transistor Output, 1Channel, SOP, 4Pins, 50mA, 3.75kV, 50%
Stock Locations:
Availability:
4,428 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.19

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The FODM124, FODM121 series, and FODM2701 consists of a gallium arsenide infrared emitting diode driving a phototransistor in a compact 4-pin mini-flat package. The lead pitch is 2.54mm. The FODM2705 consists of two gallium arsenide infrared emitting diodes connected in inverse parallel for AC operation.
Features
■More than 5mm creepage/clearance
■Compact 4-pin surface mount package (2.4mm maximum standoff height)
■Current Transfer Ratio in selected groups
DC Input:
FODM121: 50–600% FODM2701: 50–300%
FODM121A: 100–300% FODM124: 100% MIN
FODM121B: 50–150%
FODM121C: 100–200%
ACInput:
FODM2705: 50–300%
■Available in tape and reel quantities of 2500
■Applicable to Infrared Ray reflow (260°C max, 10 sec.)

Show

FODM121 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	4 Pin
Case/Package	4-Mini-Flat
Rise/Fall Time	3 µs
Output Voltage	80.0 V
Number of Channels	1 Channel
Forward Voltage	1.3V (Max)
Input Current	50.0 mA
Isolation Voltage	3750 Vrms
Forward Current	50 mA
Output Voltage (Max)	80 V
Forward Current (Max)	50 mA
	Show
Operating Temperature	-40℃ ~ 110℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
