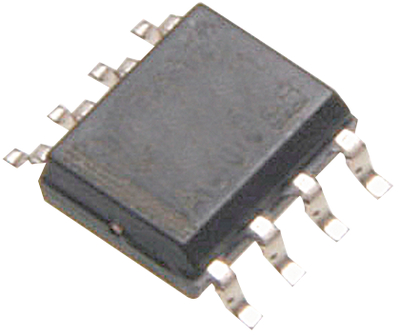

AD797ARZ - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC90274
Category:
Operational Amplifier, OP Amp IC
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES AD797ARZ Operational Amplifier, Single, 110MHz, 1 Amplifier, 18V/µs, ± 5V to ± 18V, SOIC, 8Pins
Stock Locations:
Availability:
62 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 9.51

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The AD797ARZ is an Ultralow Distortion Operational Amplifier ideal for use as a preamplifier. The low noise of 0.9nV/√Hz and low total harmonic distortion of -120dB in audio bandwidths give the AD797 the wide dynamic range necessary for preamps in microphones and mixing consoles. It has an excellent slew rate of 20V/µs and 110MHz gain bandwidth which makes it highly suitable for low frequency ultrasound applications. The ultralow noise op amp is also useful in infrared (IR) and sonar imaging applications, where the widest dynamic range is necessary. The low distortion and 16-bit settling time of the AD797 make it ideal for buffering the inputs to Σ-Δ ADCs or the outputs of high resolution DACs, especially when the device is used in critical applications such as seismic detection or in spectrum analysers. Key features such as a 50mA output current drive and the specified power supply voltage range of ±5 to ±15V make the AD797 an excellent general-purpose amplifier.
0.9nV/√Hz Typical (1.2nV/√Hz maximum) input voltage noise at 1kHz
50nVp-p Input voltage noise, 0.1 to 10Hz
Excellent AC characteristics
800ns Settling time to 16 bits (10V step)
8MHz Bandwidth (G = 10)
280kHz Full power bandwidth at 20V p-p
Excellent DC precision
80µV Maximum input offset voltage
50mA High output drive current
ESD sensitive device, take proper precaution while handling the device.

Show

AD797ARZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Output Current	50 mA
Supply Current	8.2 mA
Number of Circuits	1 Circuit
Number of Channels	1 Channel
Number of Positions	8 Position
Common Mode Rejection Ratio	114 dB
Input Capacitance	5.00 pF
Bandwidth	110 MHz
Slew Rate	18.0 V/μs
Gain Bandwidth Product	450 MHz
Input Impedance	100 MΩ
Input Offset Voltage	25 µV
Input Bias Current	250 nA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
3dB Bandwidth	8 MHz
Gain Bandwidth	110 MHz
Minimum CMRR Range	114 dB
Supply Voltage (Max)	18 V
Supply Voltage (Min)	5 V
	Show
Size-Length	5 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
Mil-Spec	No
REACH SVHC Compliance Edition	2015/12/17
